1/2 DRIVE, STUDSETTER

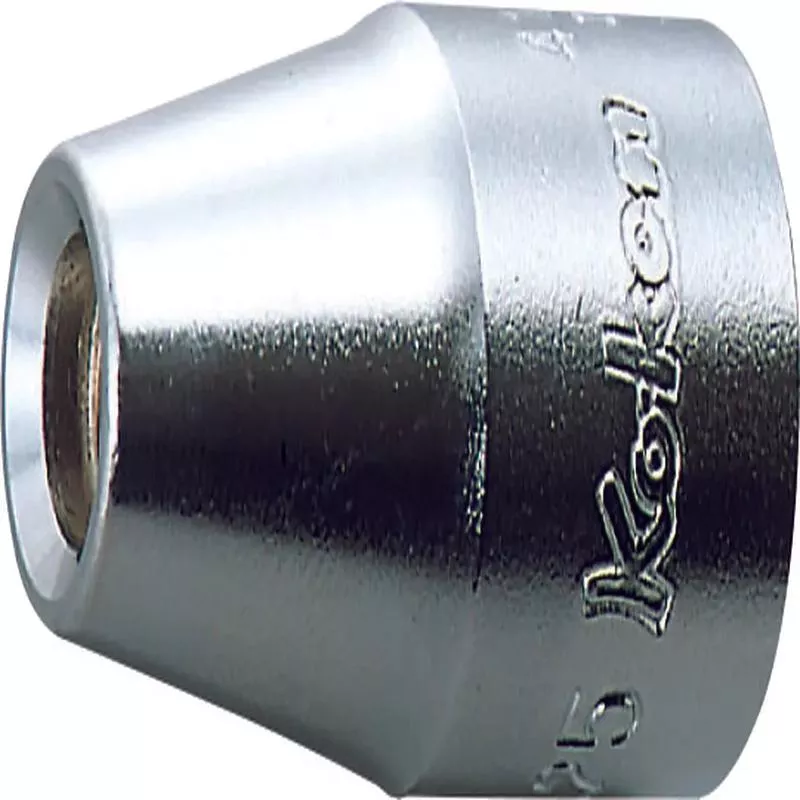

The Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.
| Input Drive Size: | 1/2″ |
| Drive Shape: | Square |
| Length: | 44mm |
| Type: | Stud Bolt Setter |
| Output Size: | 12mm x 1.25mm |
Product Dimension (Refer Line Drawing Image):
| D1 Size: | 17.8mm |
| D2 Size: | 23mm |
| H Size: | 14mm |
| L Size: | 44mm |
