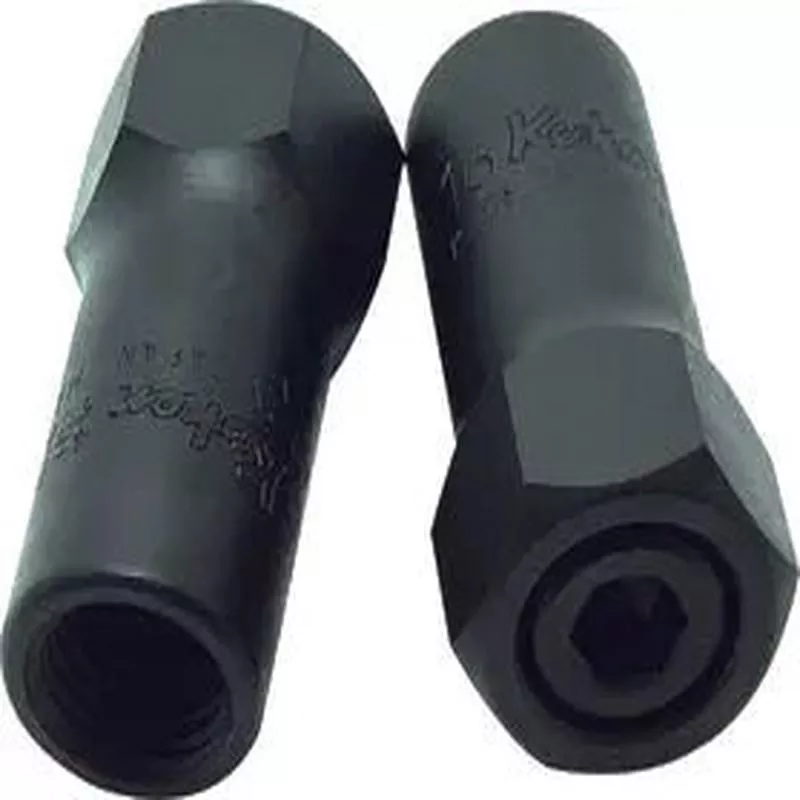

24MM HEX DRIVE, STUDSETTER
The Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.
| Input Drive Size: | 24mm |
| Drive Shape: | Hex |
| Length: | 61mm |
| Type: | Stud Setter for Construction Site |
| Output Size: | M22 x 2.5 |
Product Dimension (Refer Line Drawing Image):
| D Size: | 26.5mm |
| H Size: | 27mm |
| L Size: | 61mm |
