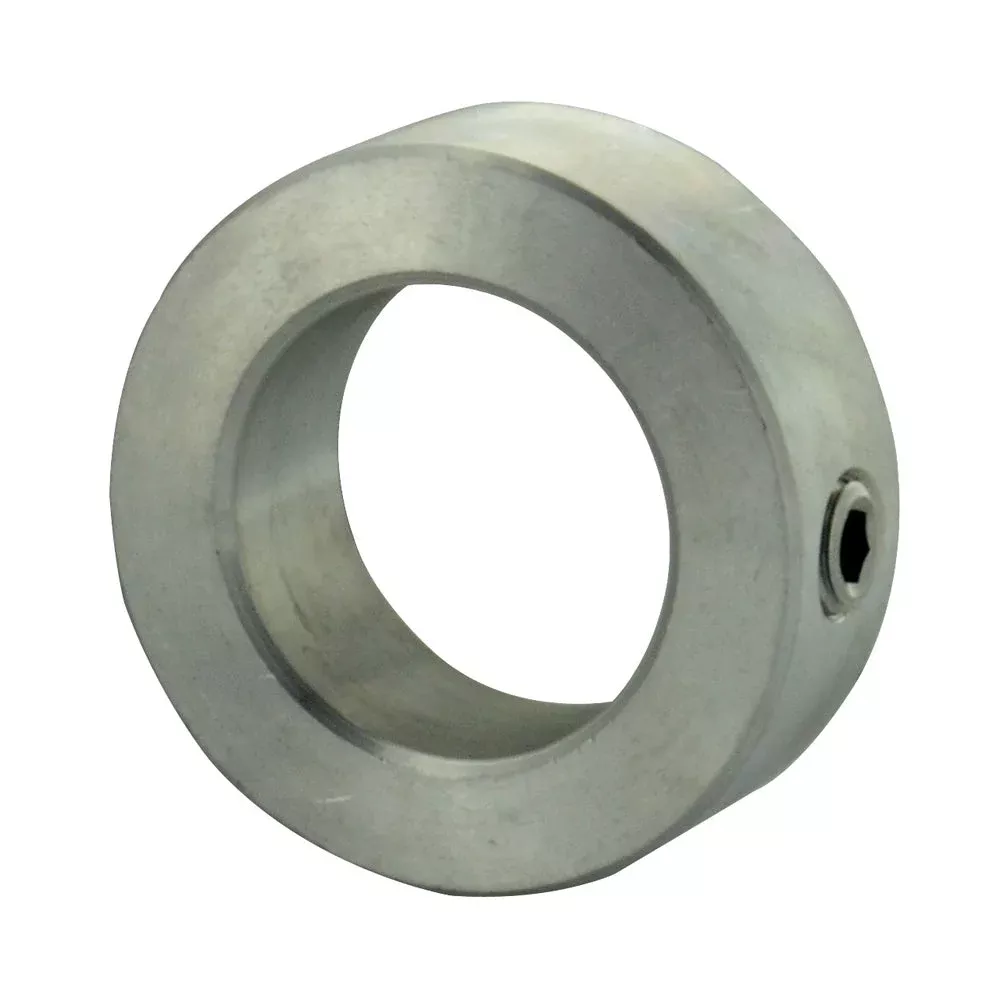

3 Inch Zinc Clear Low Carbon Steel Solid Shaft Collar

Original price was: $6.95.Current price is: $5.44.

Sale!
SKU: E96.01.3 Category:
Share
  • Standard style (SC) shaft collars use a hardened set screw to penetrate the shaft so as to achieve grip
  • This penetration yeilds light-duty benefits for applications like thrust collarsabor spacerssprockets hubsbearing holdersand shaft protectors
  • SC collars do not work well when th shaft is harder than set screw or when penetration marks on the shaft are not desirable
  • Black oxide coating will slightly increase friction and holding power in some applications

    • Finish: Zinc

  • Inside Diameter: 3 Inch
  • Inside Diameter Maximum: 3.0080 Inch
  • Inside Diameter Minimum: 3.0010 Inch
  • Item: Shaft Collar
  • Material: Low Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Outside Diameter: 4-1/4 Inch
  • Outside Diameter Maximum: 4.2580 Inch
  • Outside Diameter Minimum: 4.2420 Inch
  • Set Screw Size: 1/2-13
  • Style: Solid Set
  • Thickness: 1-1/8 Inch
  • Thickness Maximum: 1.1300 Inch
  • Thickness Minimum: 1.1200 Inch
  • Type: Round Bore
