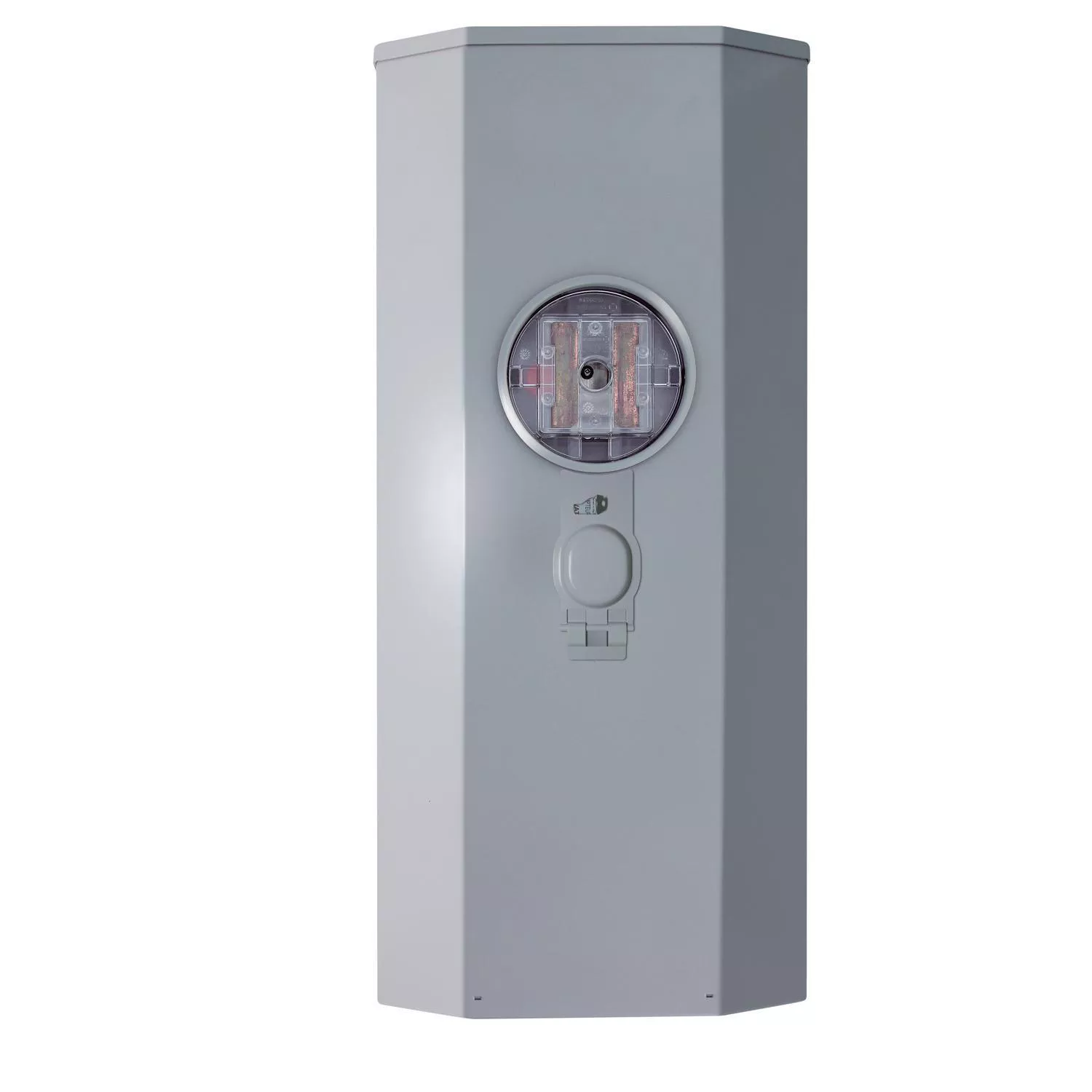

Self contained over head meter socket with bypass mechanism. 320 A overhead 600 V maximum. Self-contained meter socket with bypass mechanism. Single phase service. Line and load side termination, tunnel type connectors, dual rated for 1 x 500 kcmil or 2 x 250 kcmil. Neutral termination, tunnel type connectors. Dual rated 2 x 250 kcmil. Supplied with screw type sealing ring. Weatherproof type 3R enclosure.
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
Microlectric®
Item Name
Meter Socket with Bypass
Type
Meter Sockets
Amperage Rating
320 A
Voltage Rating
120/240 V, 600 V
Phase
1
NEMA Rating
Type 3R Weatherproof
Mounting Type
Surface/Recessed/Partially Recessed
Dimensions
5-15/16 in W x 15-9/16 in D x 34-1/16 in H
Standards
CSA 27716
Application
For Overhead Installation
UPC
624871010205
