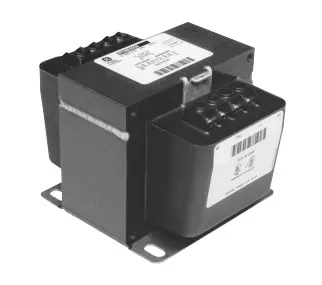

Dry type small power transformer for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important. 1-phase. 240 x 480 V primary voltage. 115 V secondary voltage, 0.05 kVA. Coil made of copper. 55°C temperature rise. N ElecShield. Machine tool terminal block sub type. 60 Hz frequency. 6100 frame size. 105°C temperature class. 40°C ambient temperature. CLASSA InsulSys. K1 K-factor. Standard sound. Fully encapsulated coil is impervious to moisture. Pressure plate terminals ensure secure connections. Terminal board is anchored in the epoxy for greater reliability. Wide variety of fusing options. Rugged, high-impact plastic terminal board. Full head No.8 brass screws assure quick, easy terminations with maximum connection integrity. Copper windings. Flexible design allows input or output voltage to match any application. Available fuse-clips offer simple, low-cost fusing with terminal block models and minimum space are important.
Specifications
| Brand Name | GE | Item Name | Small Power Transformer |
| Type | Dry-Type, Open Core and Coil | Primary Voltage | 240/480 V |
| Secondary Voltage | 115 V | VA Rating | 0.05 kVA |
| Frequency Rating | 60 Hz | Phase | 1 |
| Insulation | Class A | Frame Size | 6100 |
| Enclosure Type | NEMA ST20 | Degree of Protection | IP |
| Mounting Type | Screw | Temperature Rating | 40 °C |
| Standards | CE Marked, cUL Listed, UL-506 File E-2739 | Application | For machine tool, industrial control, panelboard and general purpose applications |
| UPC | 783173118511 |
