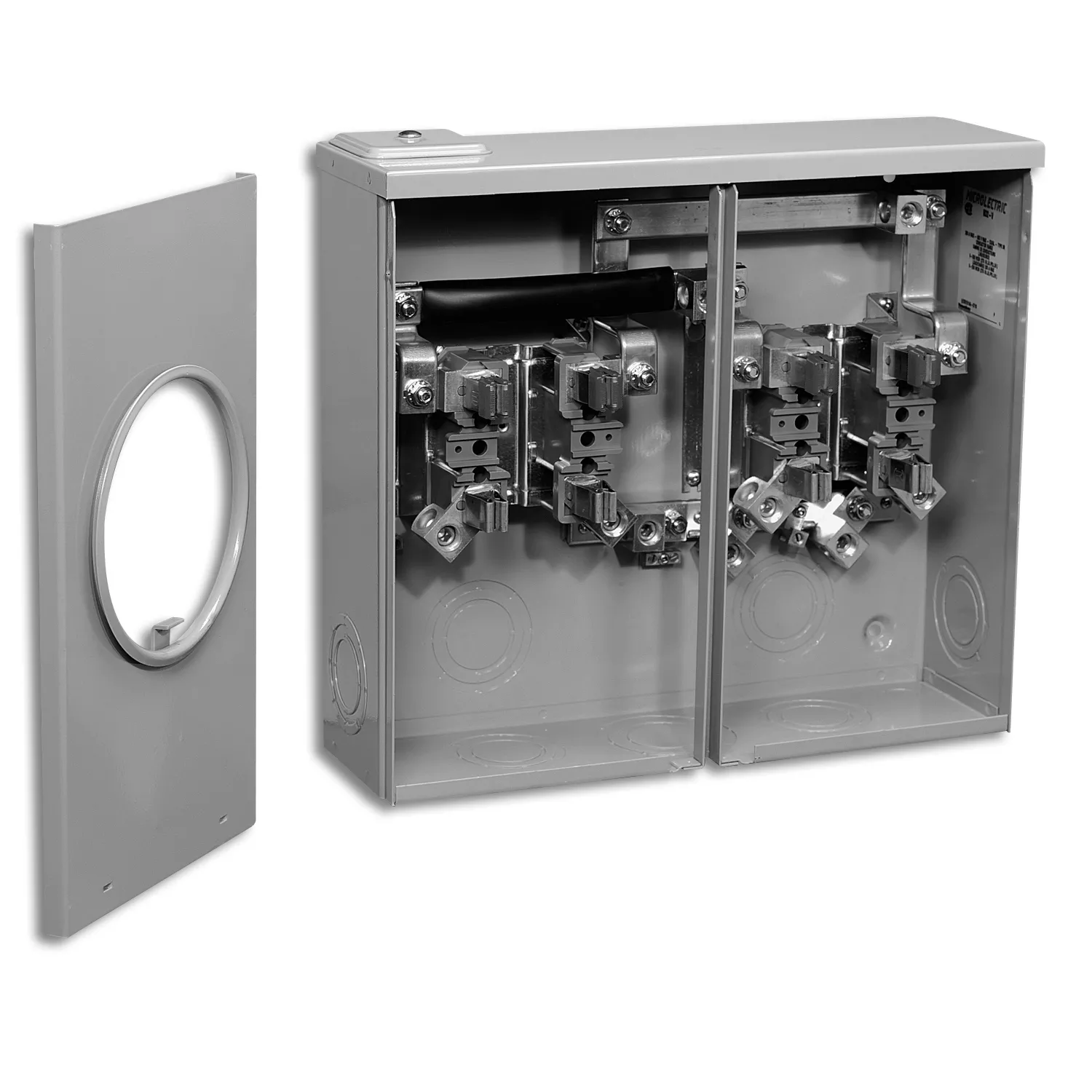

Meter socket box multiple Position – 200 A per Position 200 A (Main Lugs) 600 V Max. 4 jaw left hand entry.
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
Microlectric®
Item Name
Multi-Position Meter Socket
Type
Meter Sockets
Cable Entry
Left Side
Wire Size
6 AWG – 250 kcmil Line/Load
Amperage Rating
200 A
Voltage Rating
600 V
Phase
1
Number of Jaws
4
Number of Positions
2
Number of Wires
3
NEMA Rating
Type 3R Weatherproof
Series/Model
BD2
Connection
Aluminum Tunnel
Mounting Type
Surface
Dimensions
17-1/2 in W x 5-7/16 in D x 20 in H
Includes
Screw Type Ring
Standards
CSA 27716
Application
For Combination Overhead/Underground Installation in British Columbia
UPC
624871045580
