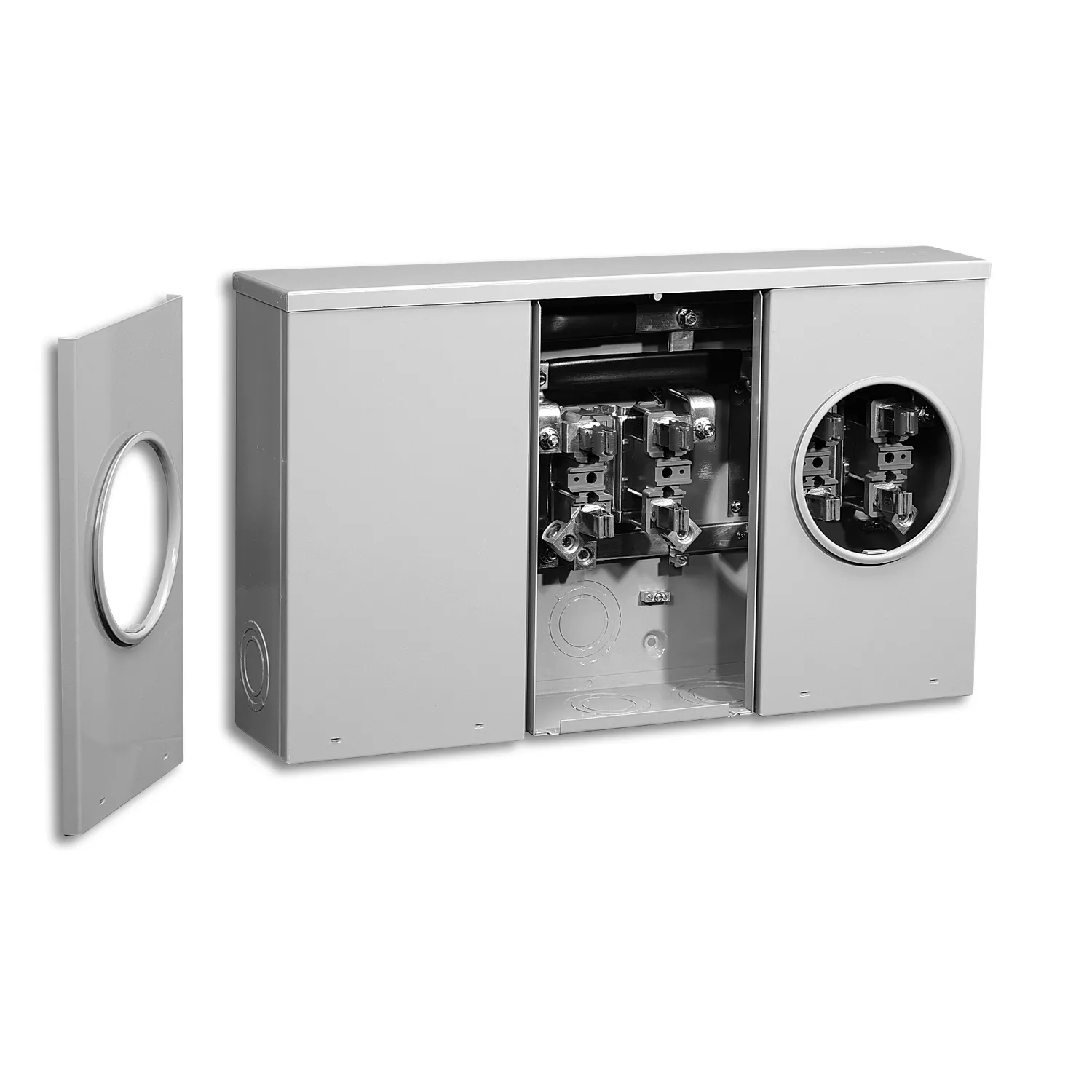

Multiple position with blank compartment 200 A per position 200 A (main lugs). Conductor range: Line: Single 1/2 inch studs to accommodate compression lugs (supplied by utility), Load: 6 AWG-250 kcmil. Aluminium tunnel type connectors for load sides. For underground service only. Factory prebussed from main lugs to each position. Supplied with screw type sealing rings. Weatherproof Type 3R enclosure.
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
Microlectric®
Item Name
Meter Socket
Type
Left Hand
Amperage Rating
200 A
Voltage Rating
600 V
Phase
1
Number of Positions
2
NEMA Rating
Type 3R Weatherproof
Mounting Type
Surface
Dimensions
26-1/4 in W x 5-1/4 in D x 20-3/4 in H
Standards
CSA 27716, BC Hydro Approved
Application
For Underground Service Only
UPC
624871007809
