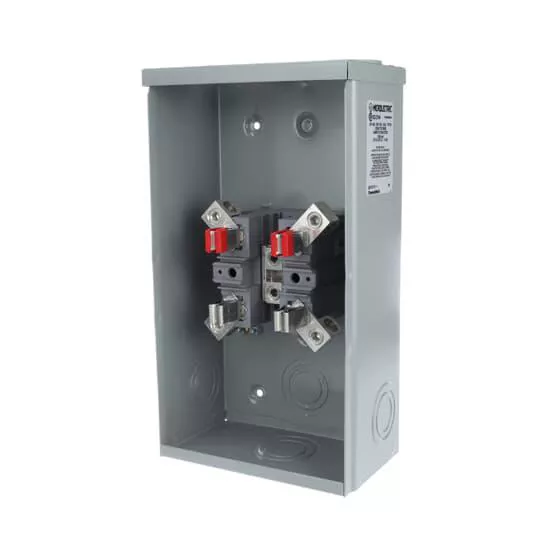

Microlectric® meter socket, 200 A, 600 V, 7 jaw, twin overhead hub opening, c/w 2 inch hubs, suits 6 AWG to 250 kcmil conductor range. Aluminium tunnel type connectors for both load and line sides. Supplied with screw type ring and weatherproof type 3R enclosure.
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
Microlectric®
Item Name
Single Position Meter Socket
Type
Standard
Amperage Rating
200 A
Voltage Rating
600 V
Phase
1
Number of Positions
1
NEMA Rating
Type 3R Weatherproof
Mounting Type
Surface
Dimensions
8-47/64 in W x 5-13/32 in D x 15-5/8 in H
Includes
2 in Twin Hub
Standards
CSA 27716
Application
For Overhead Installation
UPC
624871002149
