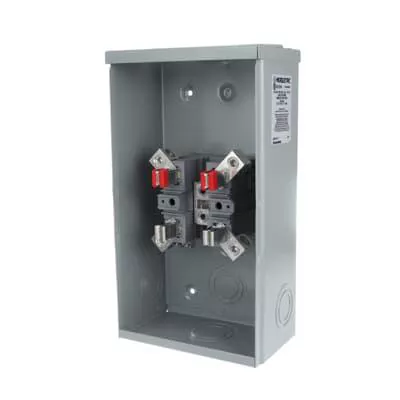

Meter socket, BQ2 Series, standard enclosure, 200A 600V, 6 AWG–250 kcmil conductor range. Aluminum tunnel type connectors for both load and line sides. Supplied with screw type ring. Weatherproof Type 3R enclosure.
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
Microlectric®
Item Name
Single Position Meter Socket with Twin Hub
Type
Standard
Amperage Rating
200 A
Voltage Rating
600 V
Phase
1
Number of Positions
1
NEMA Rating
Type 3R Weatherproof
Mounting Type
Surface
Dimensions
8-47/64 in W x 5-13/32 in D x 15-5/8 in H
Standards
CSA 27716
Application
For Overhead Installation
UPC
624871002132
