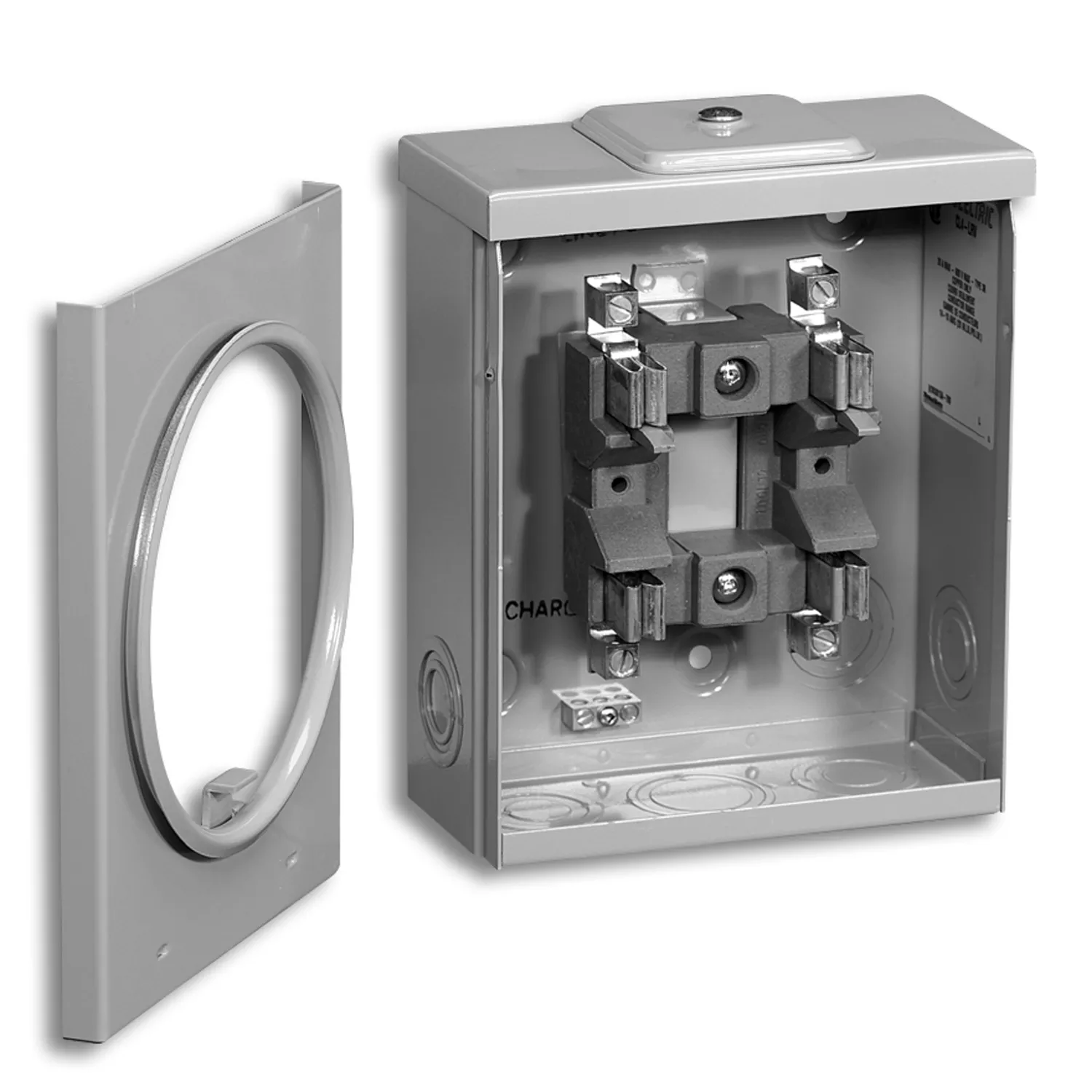

Aluminium tunnel type connectors for both load and line sides. Circuit closing feature to short out current transformer upon removal of meter. For overhead hub opening only. Supplied with screw type ring. Weatherproof type 3R enclosure. Circuit closing on left side. (lower right hand jaw is a support only).
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
Microlectric®
Item Name
Meter Socket with Circuit Closing Device
Type
Transformer Rated
Amperage Rating
20 A
Voltage Rating
600 V
Phase
1
Number of Jaws
5
NEMA Rating
Type 3R Weatherproof
Mounting Type
Surface
Dimensions
7-5/8 in W x 3-11/16 in D x 9-1/4 in H
Standards
CSA 27716
Application
For Overhead Hub Opening Only
UPC
624871022802
