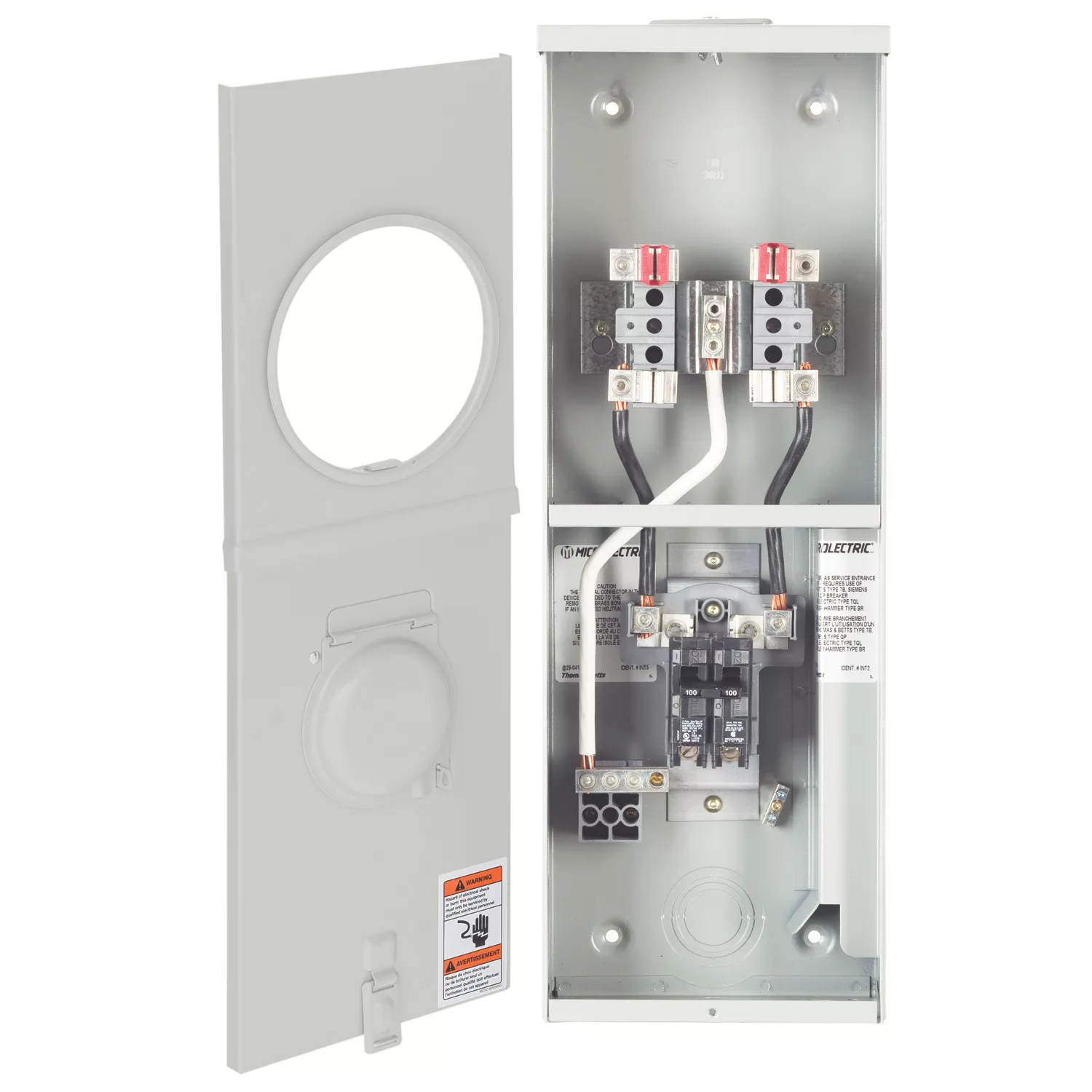

Meter sockets combination with or without breaker 100A 120/240V max. Conductor range: 6-1/0 AWG. Aluminum tunnel type connectors for both load and line sides. For overhead installation. Suitable for 120/240 V single phase service entrance for mobile homes, trailers, temporary services, recreational parks and other commercial and residential locations. Bottom compartment has provision for 2 pole circuit breakers (max. 100 A) Siemens (QP), GE (TQL), Cutler Hammer (BR) and Schneider (CHOMT). Supplied with screw type ring. Weatherproof type 3R enclosure. Primarily used in: All provinces.
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
Microlectric®
Item Name
Combination Meter Socket with Breaker
Type
Meter Sockets
Amperage Rating
100 A
Voltage Rating
120/240 V
Phase
1
NEMA Rating
Type 3R Weatherproof
Mounting Type
Surface
Dimensions
8-1/4 in W x 4-3/8 in D x 23-1/2 in H
Standards
CSA 27716
Application
For Underground Installation
UPC
624871005409
