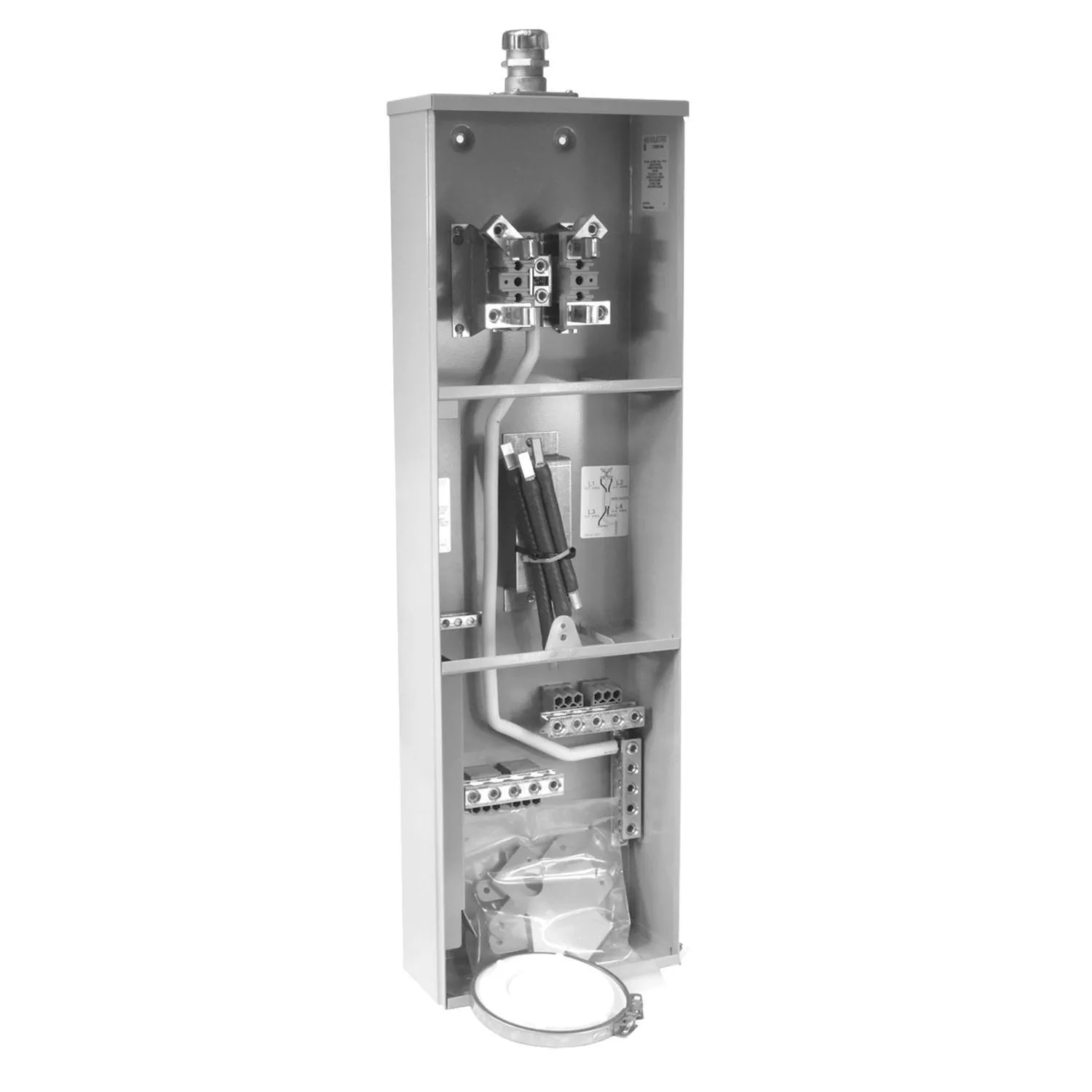

MICROLECTRIC® meter socket with combination overhead-underground clockwise 200 A breaker and neutral bar (splitter included) for use in Alberta. Suits 6 AWG to 250 kcmil conductor range. Tunnel type connectors for both load and line sides. For combination overhead/underground service only. With CO2FB connection wires.
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
Microlectric®
Item Name
Combination Meter Socket
Type
Meter Sockets
Amperage Rating
200 A
Voltage Rating
120/240 V
Phase
1
Number of Jaws
4
Mounting Type
Surface
Dimensions
12 in W x 39-3/8 in H x 5-7/16 in D
Includes
Breaker
Standards
CSA 27716 Certified
Application
For Combination Overhead/Underground Applications
UPC
624871004433
