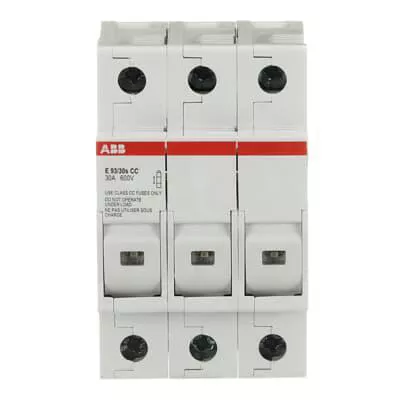

E 93/30S CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses
Specifications
| Brand Name | ABB | Item Name | Fuse Holder |
| Voltage Rating | 600 V | Amperage Rating | 30 A |
| Fuse Type | Class CC | Number of Poles | 3 |
| Wire Size | (1) 1.5 – 16 mm², (2) 2 – 5 mm² Stranded, (1) 1.5 – 25 mm², (2) 5 mm² Rigid | Length | 64 mm |
| Width | 53 mm | Height | 85 mm |
| Mounting | DIN Rail | Standards | CE Certified, IP20, REACH Compliant, RoHS Compliant, UL E90/30 CC Listed, UL 4248-1, UL 4248-4 Listed |
| UPC | 012542999421 |
