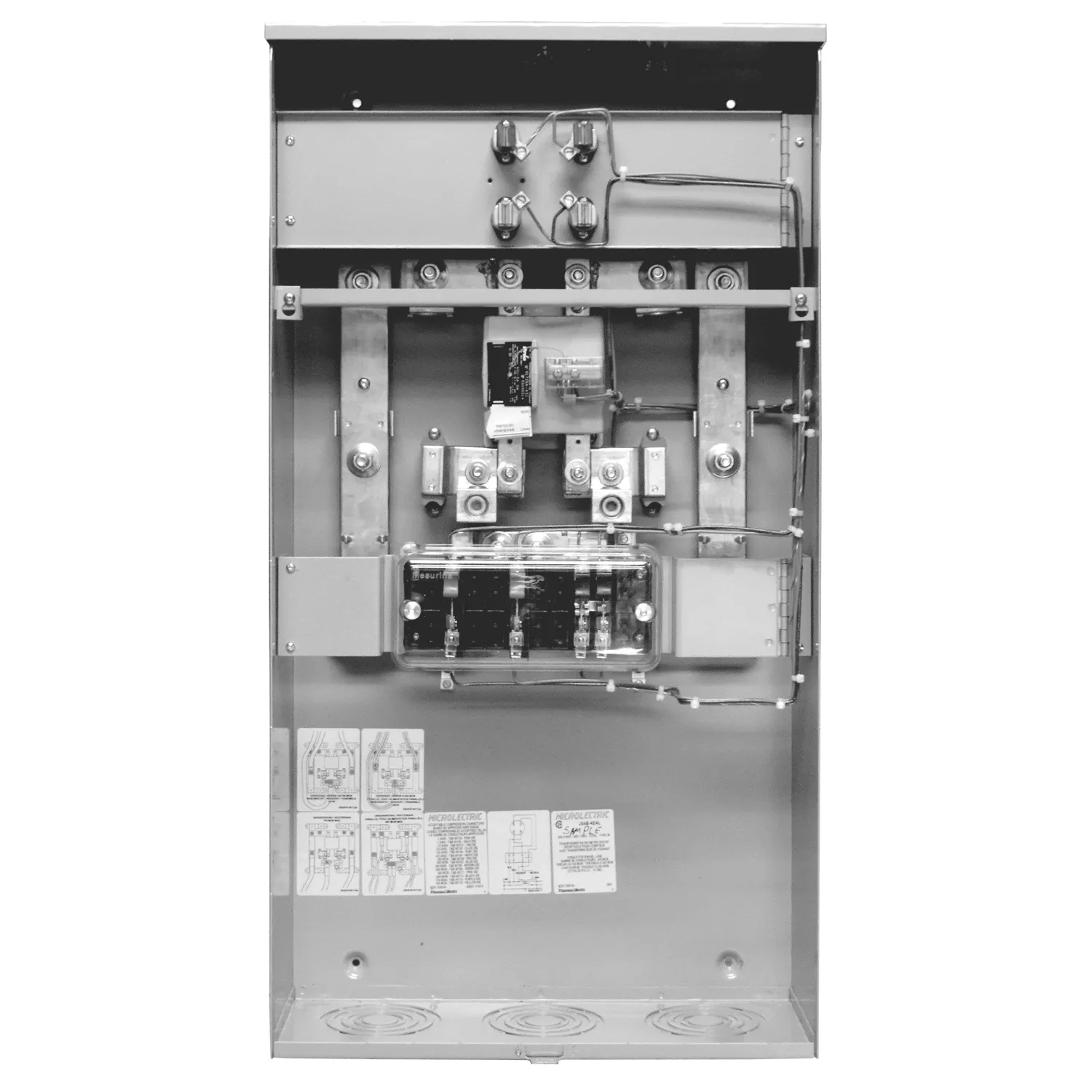

Aluminium feed JS4 series meter socket. Permanent red nameplate affixed to front cover warns that removal of meter does not isolate the load terminals also notice of automatic circuit closing. Device on JS4A and warning to short circuit current transformer secondary before removal of meter on JS4B. Meter socket configuration for 4 jaw meters. 400/4 A three-wire current transformer provides low current for service metering proportional to higher current draw. Consumer and corporate affairs. Gutter wiring space provided on left side.
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
Microlectric®
Item Name
Meter Socket with Switch
Type
Transformer Rated
Amperage Rating
400 A
Voltage Rating
120/240 V
Phase
1
Number of Jaws
4
NEMA Rating
Type 3R Weatherproof
Mounting Type
Surface
Dimensions
514.35 mm W x 209.55 mm D x 965.2 mm H
Standards
CSA 27716
Application
For Overhead/Underground Installation
UPC
624871039404
