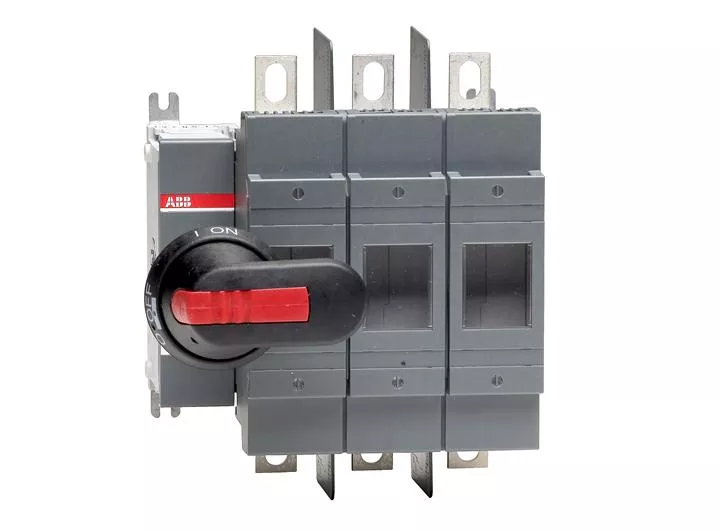

Fusible Switch 200 Amps Three-Pole Including terminal bolt kit, a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position. The shaft is adjustable for a range of installation depths. Fuse standards UL 198C
Specifications
| Brand Name | ABB | Item Name | Disconnect Safety Switch |
| Type | Fusible, Front Operated | Voltage Rating | 500 V |
| Amperage Rating | 200 A | Fuse Type | Class J |
| Number of Poles | 3 | Connection Type | Lug Terminal |
| Series/Model | OS | Mounting Type | Base |
| Degree of Protection | IP65 | Dimensions | 182 mm W x 132 mm D x 199 mm H |
| Includes | Terminal Bolt Kit, Black On-Off Plastic Handle and Shaft | Standards | UL198C, UL 98, IEC 60947-3 |
| Application | Low Voltage Applications | UPC | 888614017634 |
