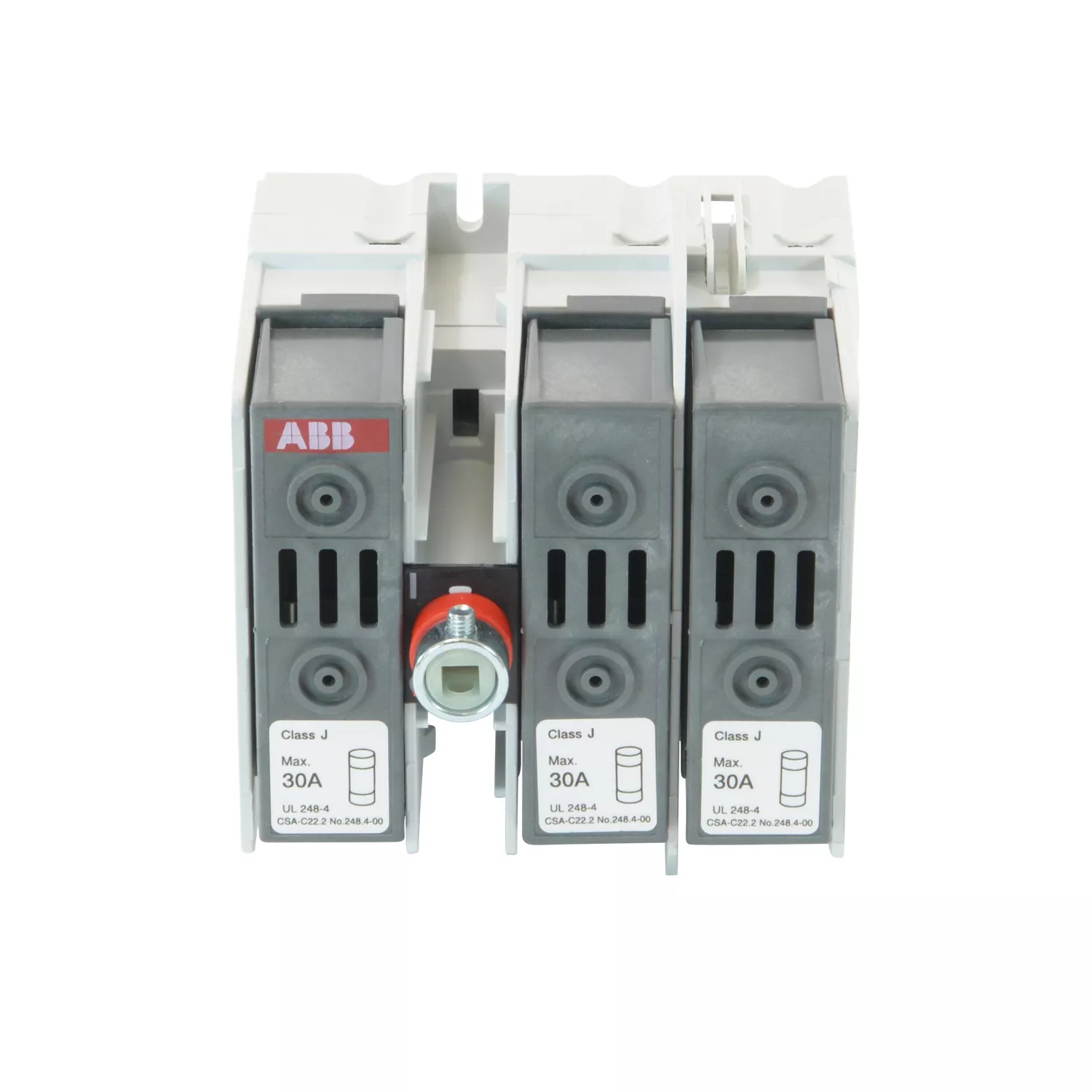

3 pole, 30 amps rated at 600 VAC, UL 98, open fusible disconnect switch for use with J fuse type
Specifications
| Brand Name | ABB | Item Name | Disconnect Switch |
| Type | Front Operated, Fusible, Open | Voltage Rating | 600 VAC |
| Amperage Rating | 30 A | Load Rating | 7.5 hp at 240 V, 15 hp at 480 V, 20 hp at 600 V, 7.5 kW at 220 – 240 V, 15 kW at 400/415 V, 18.5 kW at 500 V, 22 kW at 690 V |
| Fuse Type | Class J | Number of Poles | 3 |
| Wire Size | 2.5 – 25 mm² | Connection Type | Screw Terminal |
| Series/Model | OS | Mounting Type | Base |
| Dimensions | 119 mm L x 143 mm W x 100 mm H | Standards | CE Certified, EAC, DNV GL Certified, IEC 60947-3, RoHS Compliant, UL 98 |
| Application | For Use with J Fuse Type | UPC | 804325415842 |
