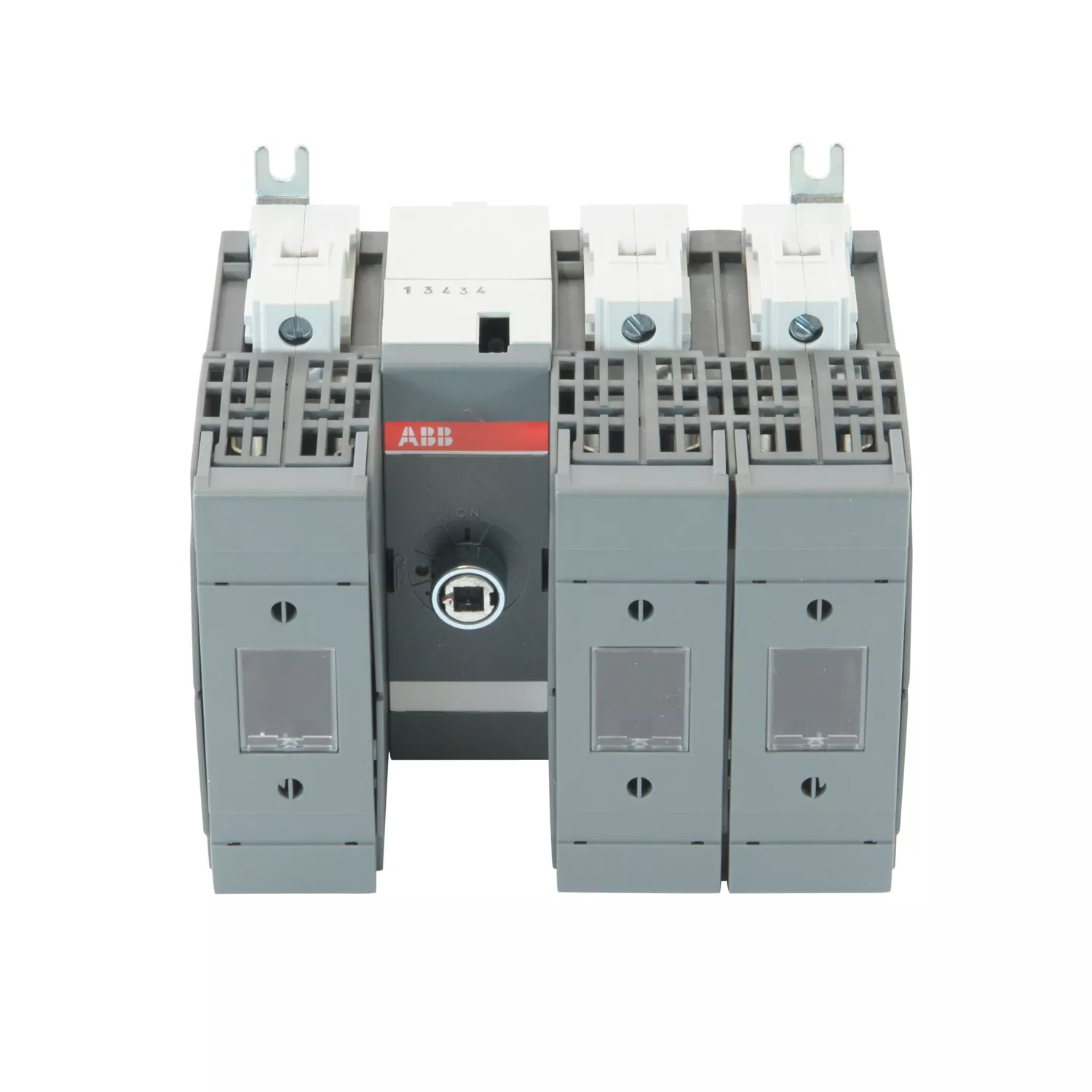

Switch Fuses,Front Operated,3-pole,12 (Between the Poles),Class J,60 A,Handle and shaft not included
Specifications
| Brand Name | ABB | Item Name | Disconnect Switch |
| Type | Front Operated, Fusible, Open | Voltage Rating | 600 VAC |
| Amperage Rating | 60 A | Load Rating | 15 hp at 240 V, 30 hp at 480 V, 50 hp at 600 V, 18.5 kW at 220 – 240 V, 30 kW at 400/415 V, 37 kW at 500 V, 55 kW at 690 V |
| Fuse Type | Class J | Number of Poles | 3 |
| Wire Size | 2.5 – 25 mm² | Connection Type | Screw Terminal |
| Series/Model | OS | Mounting Type | Base |
| Dimensions | 118 mm L x 145 mm W x 112 mm H | Standards | CCC, EAC, DNV GL, CE Certified, IEC 60947-3, RoHS Compliant, UL 98 |
| UPC | 804325562737 |
