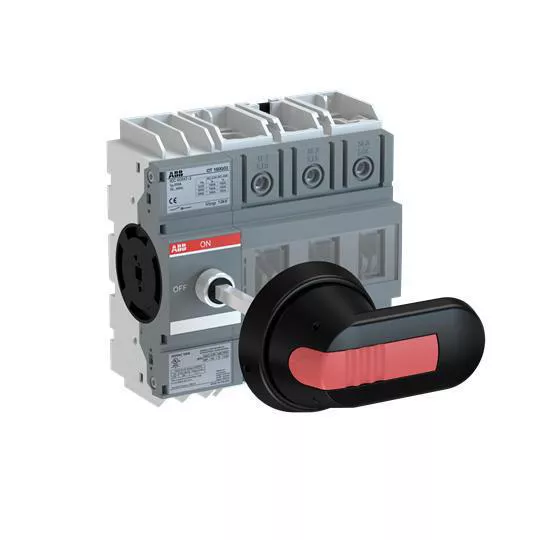

3-pole, front operated, base mounted switch-diconnector with protected clamp terminals and with black IP65 handle and shaft
Specifications
| Brand Name | ABB | Item Name | Disconnect Safety Switch |
| Type | Non-Fusible, Front and Side Operated | Voltage Rating | 600 VAC |
| Amperage Rating | 100 A | Number of Poles | 3 |
| Wire Size | 10 – 70 mm² | Connection Type | Screw Terminal |
| Mounting Type | Base | Degree of Protection | IP20 |
| Dimensions | 123 mm W x 73 mm D x 130 mm H | Includes | Protected Clamp Terminals, Handle, Shaft |
| Standards | IEC 60947-3, UL 98, CSA C22.2 No. 4 | UPC | 888614628533 |
