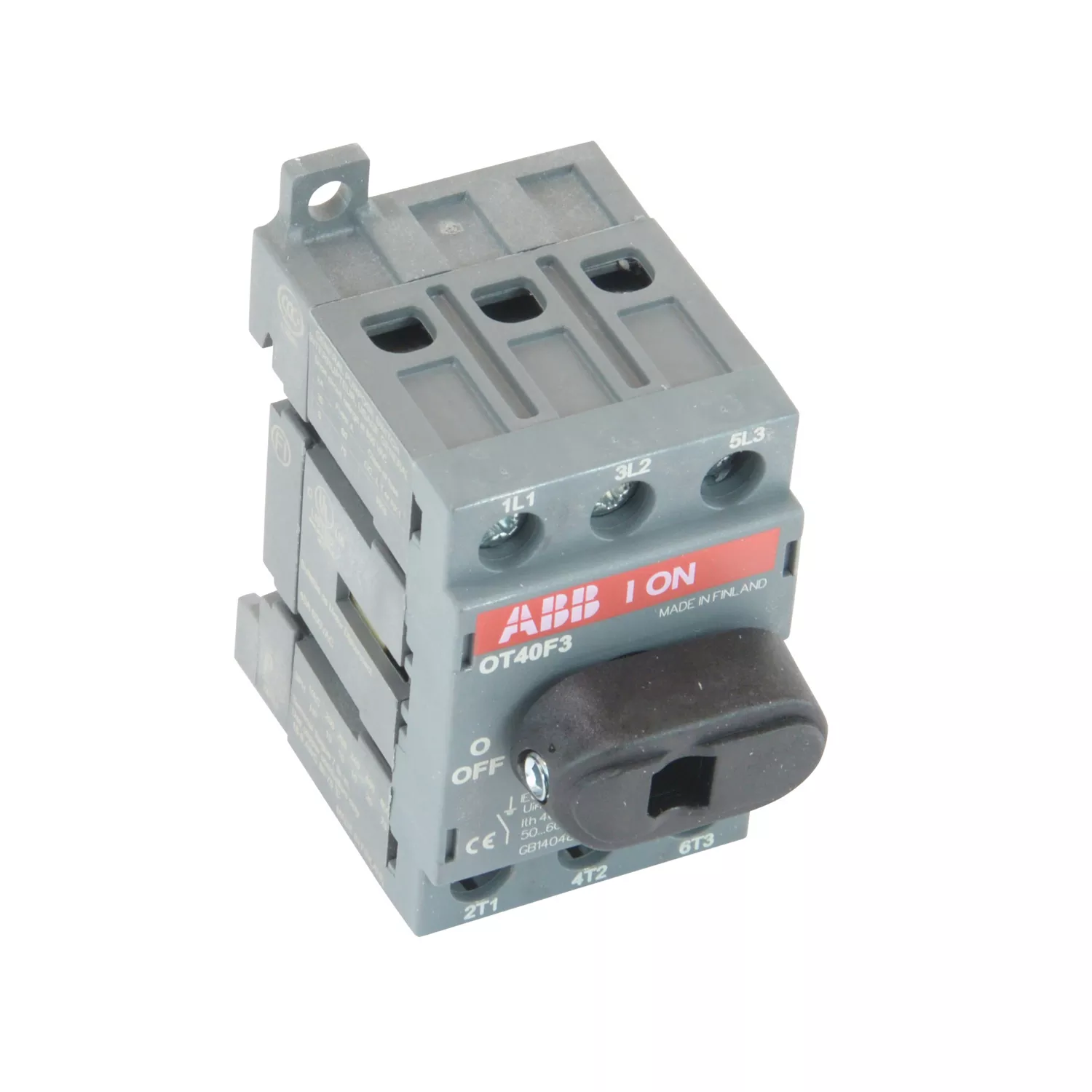

3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included
Specifications
| Brand Name | ABB | Item Name | Disconnect Switch |
| Type | Front Operated, Non-Fusible, Open | Voltage Rating | 600 VAC |
| Amperage Rating | 40 A | Load Rating | 2 hp at 110 – 120 VAC, 5 hp at 240 VAC, 10 hp at 440 – 480 VAC, 15 hp at 550 – 600 VAC 1-Phase, 10 hp at 220 – 240 VAC, 20 hp at 440 – 480 VAC, 25 hp at 550 – 600 VAC 3-Phase |
| Number of Poles | 3 | Connection Type | Screw Terminal |
| Mounting Type | Base | Degree of Protection | IP20 |
| Dimensions | 56 mm L x 35 mm W x 68 mm H | For Use With | Circuit Breaker Enclosure |
| Standards | CE Certified, CSA C22.2 No. 14, IEC 60947-3, RoHS Compliant, UL 508 | Application | Industrial Control Panel Disconnects |
| UPC | 804325415538 |
