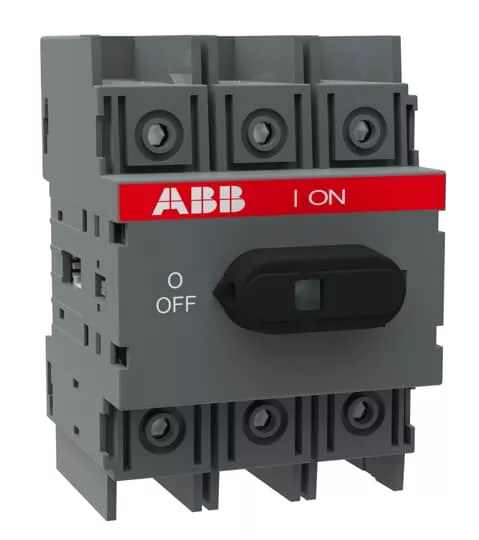

3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with front protected clamp terminals, handle and shaft are not included.
Specifications
| Brand Name | ABB | Item Name | Disconnect Switch |
| Type | Front Operated, Non-Fusible | Voltage Rating | 600 VAC |
| Amperage Rating | 60 A | Load Rating | 3 W, 3 hp at 110 – 120 VAC, 7.5 hp at 240 VAC, 20 hp at 220 – 240 VAC, 40 hp at 440 – 480/550 – 600 VAC |
| Number of Poles | 3 | Connection Type | Screw Terminal |
| Mounting Type | Base | Degree of Protection | IP20 |
| Dimensions | 74 mm L x 70 mm W x 100 mm H | Includes | Pistol and Shaft |
| Standards | CSA C22.2 No. 4, IEC 60947-3, UL 98 | Application | Low Voltage Applications |
| UPC | 888614013735 |
