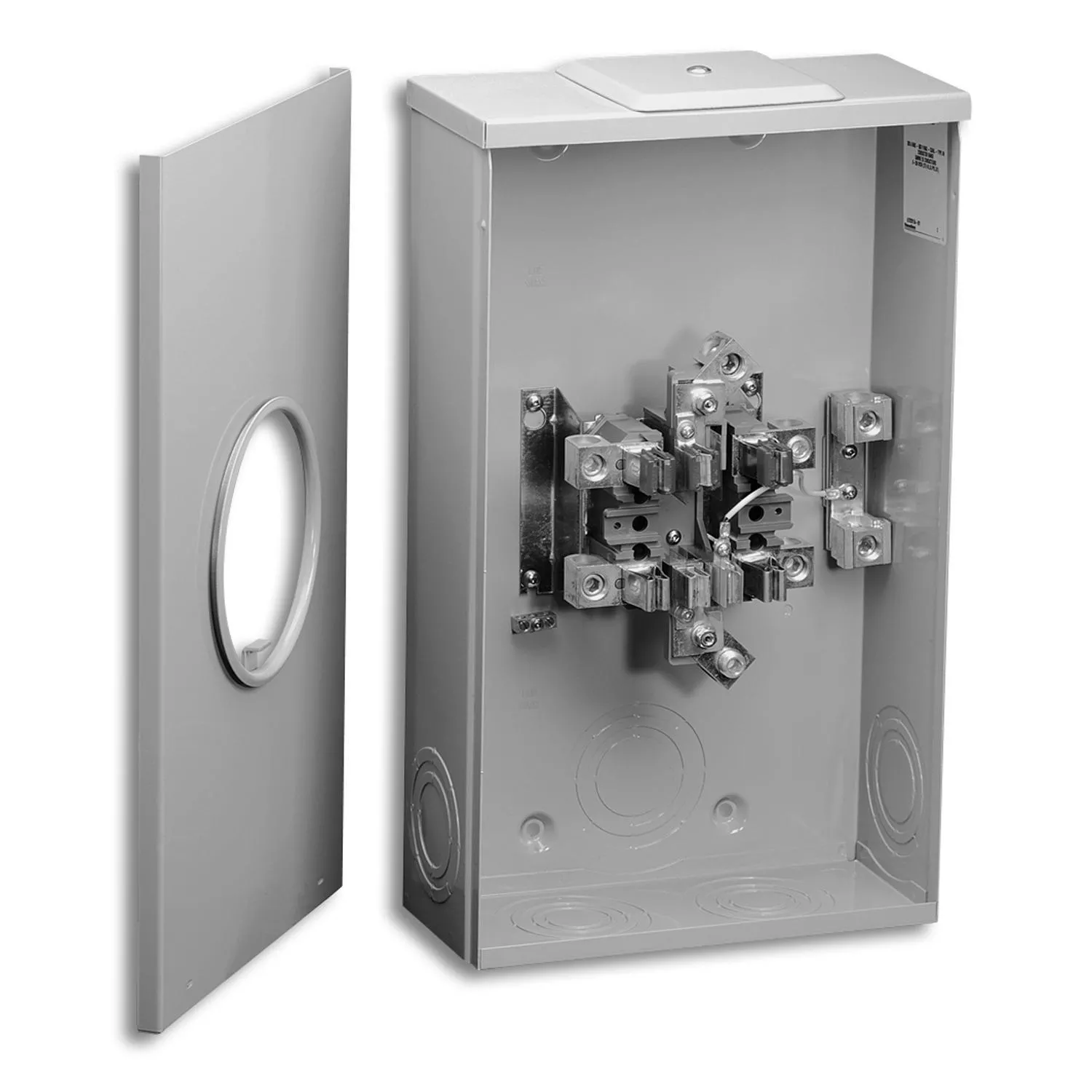

Microlectric® polyphase meter socket with insulated neutral. 200 A, 600 V, 7 jaw, overhead hub opening, suits 6 AWG to 250 kcmil conductor range. Tunnel type connectors for both load and line sides. Supplied with screw type ring and weatherproof type 3R enclosure.
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
Microlectric®
Item Name
Single Position Meter Socket
Type
Polyphase
Amperage Rating
200 A
Voltage Rating
600 V
Number of Positions
1
NEMA Rating
Type 3R Weatherproof
Insulation
Neutral
Mounting Type
Surface
Dimensions
12 in W x 5-7/16 in D x 20-1/8 in H
Standards
CSA 27716
Application
For Overhead and Combination Overhead/Underground Service
UPC
624871003436
