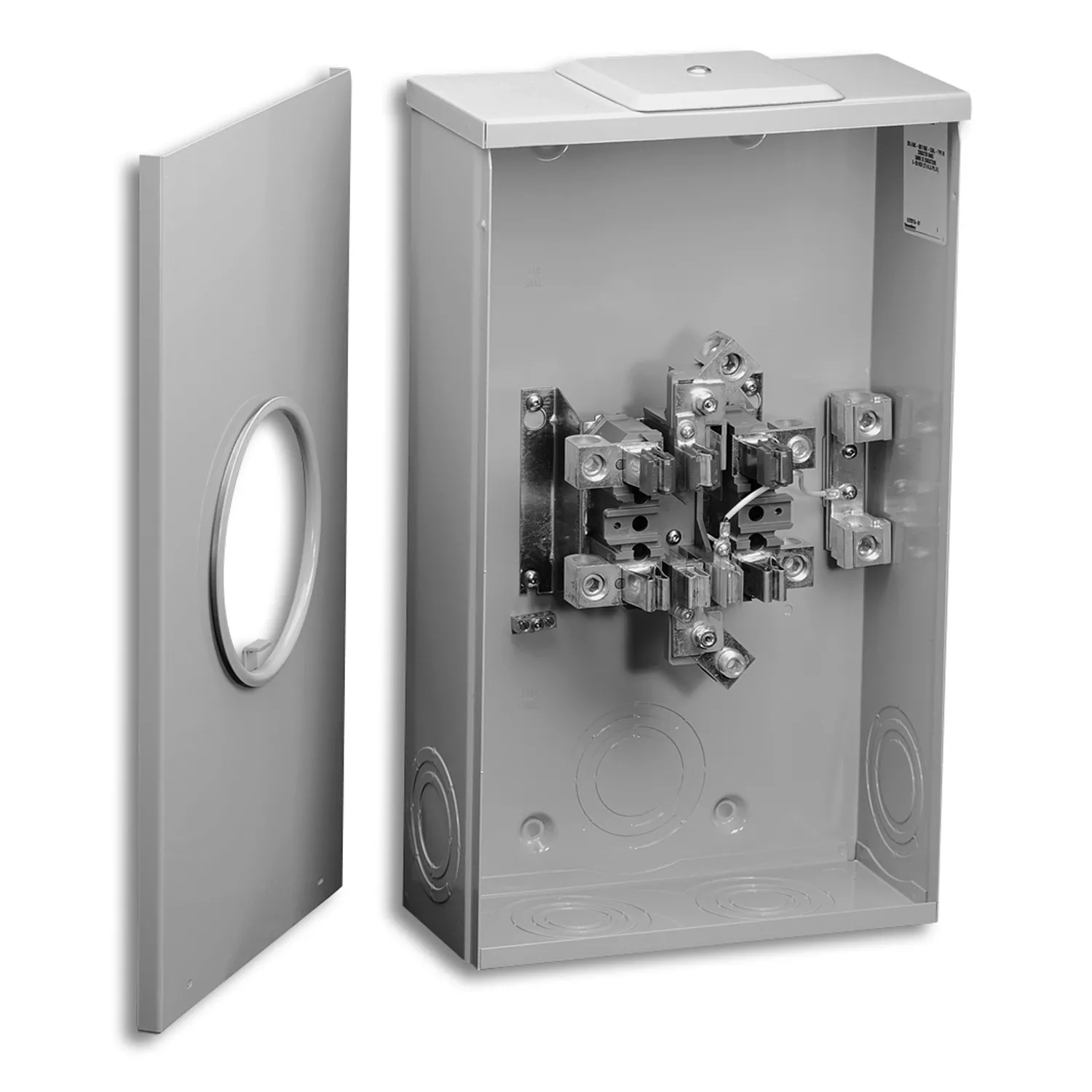

200Amp 600V; Polyphase Meter Sockets Product Specifications • Conductor range: 6 AWG-250 kcmil • Tunnel type connector for both load and line sides • For overhead and combination overhead/underground service • Larger hub opening requires use of 3 in., 3-1/2 in. or 4 in. hubs unless BS052 adapter plate is used • Supplied with screw type ring • Weatherproof Type 3R enclosure • Primarily used in: All provinces
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
Microlectric®
Item Name
Single Position Meter Socket
Type
Polyphase
Wire Size
6 AWG – 250 kcmil
Amperage Rating
200 A
Voltage Rating
600 V
Phase
3
Number of Jaws
7
Number of Positions
1
Number of Wires
4
NEMA Rating
Type 3R Weatherproof Extended
Series/Model
PL27
Connection
Tunnel
Mounting Type
Surface
Dimensions
12 in W x 5-7/16 in D x 20-1/8 in H
Includes
Screw Type Ring
Standards
CSA 27716
Application
For Overhead and Combination Overhead/Underground Service
UPC
624871003443
