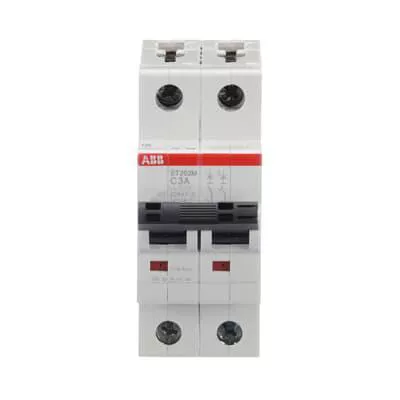

ST202M-C3 Miniature Circuit Breaker C-Char., 10kA, 3A, 2P acc. to UL 1077.
Specifications
| Brand Name | ABB | Item Name | Miniature Circuit Breaker |
| Number of Poles | 2 | Interrupt Rating | 10 kA |
| Amperage Rating | 3 A | Voltage Rating | 480/277 VAC |
| Terminal Connection | Failsafe Bi-Directional Cylinder-Lift Terminal | Mounting Type | DIN Rail |
| Trip Range | 1.03 – 1.25 A Thermal, 5 – 10 A Electromagnetic | Frequency Rating | 50/60 Hz |
| Conductor Size | 35 mm² Solid/Stranded, 25 mm² Flexible | Actuator | Toggle |
| Housing Material | Robust Thermoplastic | Trip Type | C-Curve, Thermal, Electromagnetic |
| Temperature Rating | -25 to 55 °C | Dimensions | 35 mm W x 88 mm H x 69 mm D |
| Degree of Protection | IP20, IP40 | Environmental Conditions | 28 Cycles with 90 – 96% at 55 °C and 95 – 100% at 25 °C |
| Includes | Auxiliary Contact, Signal Contact, Shunt Trip | Standards | UL 1077, CSA 22.2 No. 235, IEC/EN 60947-2, VDE, CCC, EAC Certified |
| Application | For Supplementary Protection | UPC | 888614807242 |
