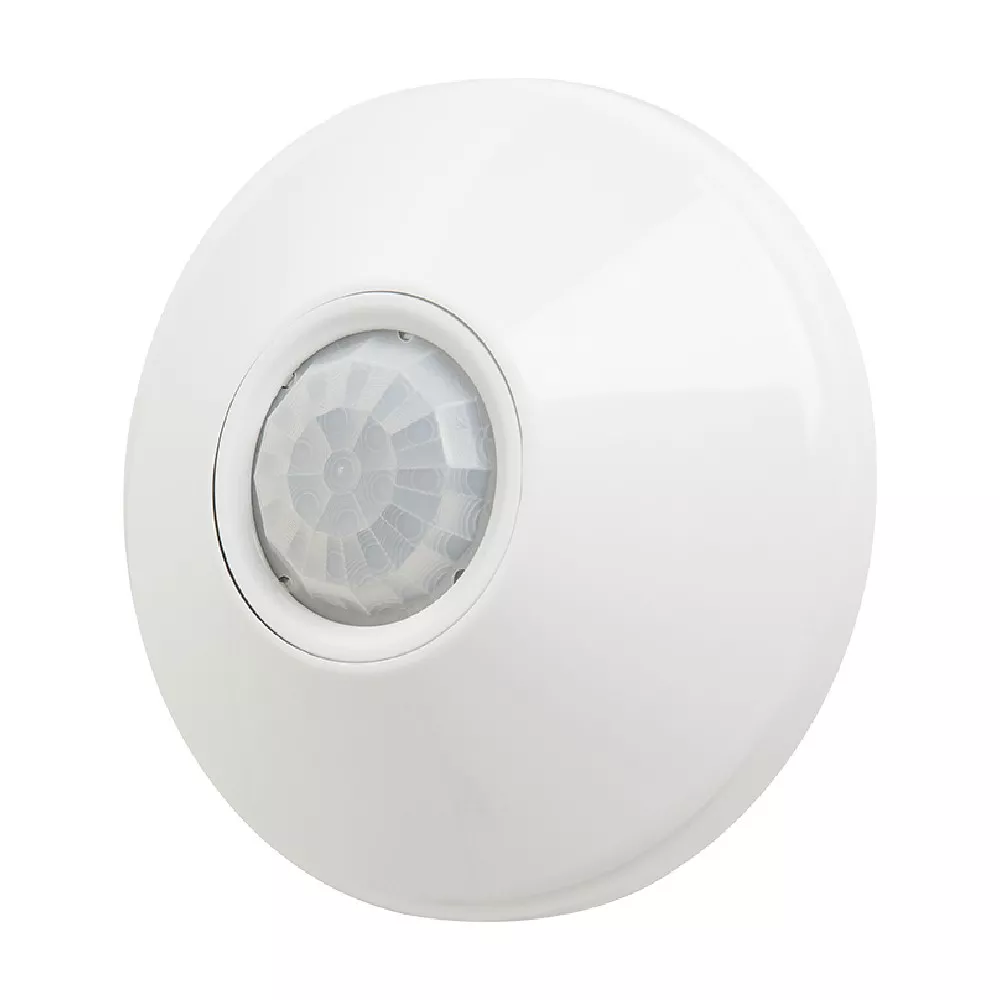

The CMR 9 Series Standard Range 360° occupancy sensor incorporates Passive Infrared (PIR) detection technology into an attractive line powered occupancy sensor that provides amazing sensitivity to small motions (e.g. hand movements) and excellent payback. The CMR 9 is an economical solution for providing automatic lighting control where a wall switch replacement sensor is not applicable. With an integrated line switching relay, the CMR 9 is perfect for applications where locating a power pack is difficult, such as retrofitting rooms with concrete or inaccessible ceilings. For rooms with obstructions, the CMR PDT 9 Series sensor is recommended.FEATURES:• Push- button programmable, adjustable time delays, and multiple operating modes• 100 hr lamp burn-in timer• No field calibration or sensitivity adjustments required• No minimum load requirements
Specifications
| Brand Name | Acuity Brands | Item Name | Occupancy Sensor |
| Voltage Rating | 12/24 VAC | Amperage Rating | 20 mA |
| Sensor Type | Passive Infrared | Sensing Distance | 6.1 m |
| Viewing Angle | 56 – 360° | Color | White, Gloss |
| Mounting Type | Ceiling | Frequency Rating | 50/60 Hz |
| Maximum Load Capacity | 1500 W | Response Time | 10 min |
| Material | Plastic | Dimensions | 39.4 mm D |
| Mounting Height | 4.57 m | Temperature Rating | -10 to 71 °C |
| UPC | 745975808281 |
