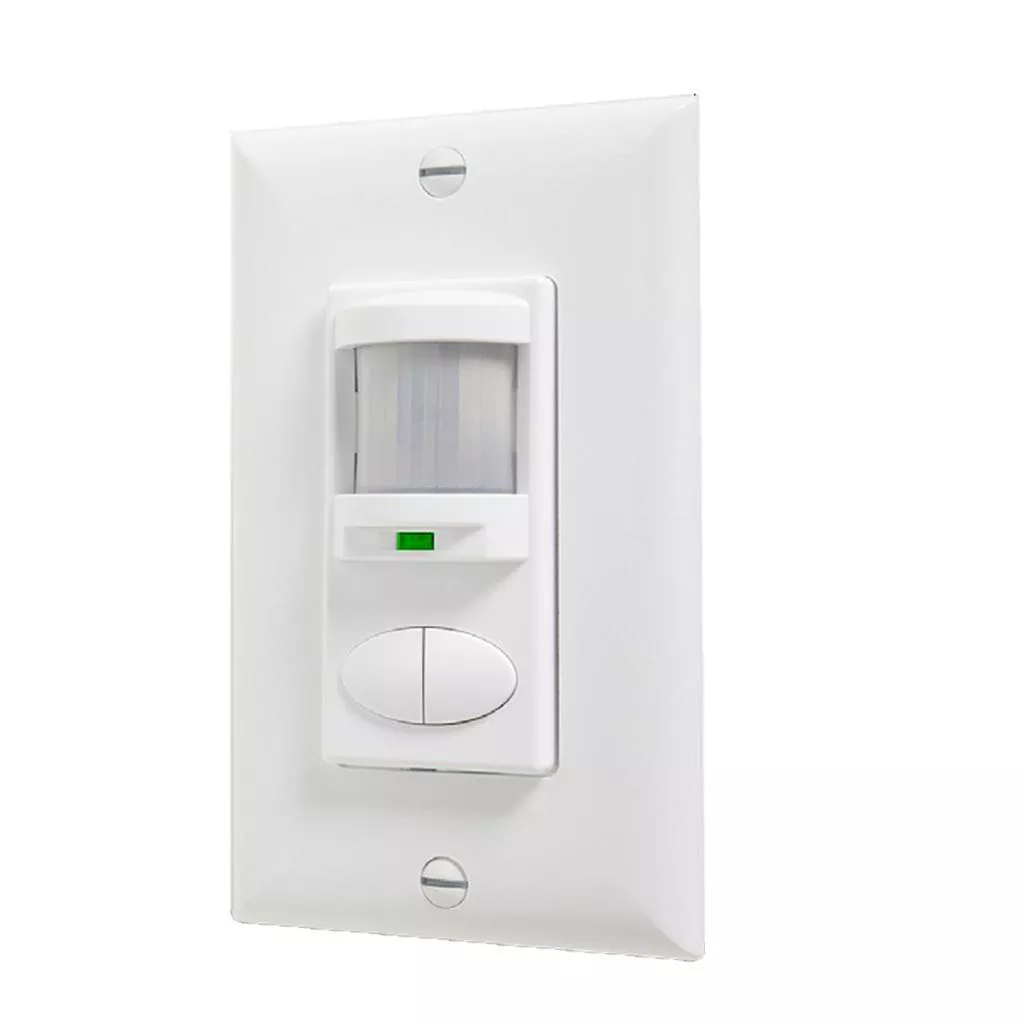

The WSD is a stylish, easy to install, and simple to use Wall Switch Decorator style Passive Infrared (PIR) sensor. It is ideal for private offices, copy rooms, closets, or any small enclosed space without obstructions. A user programmable time delay ensures that once the room is vacated the sensor will time out and turn off the lights. Additionally, the WSD sensor has several On Modes and Switch Modes that can be programmed using the front push-button. For rooms with obstructions, the Dual Technology WSD PDT Series sensor is recommended. Additionally, all WSD Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection. WSD units come preconfigured for wiring without a neutral; however, if connection to neutral is required by code, contractors can convert the unit in seconds.FEATURES:• Compatible w/LEDs, electronic & magnetic ballasts, CFLs, & incandescents• 100% passive detection, no potential for interference with other building systems• Small motion detection to 20 ft• Push-button programmable without removing cover plate – adjustable time delays & operating modes• Dual technology (PDT) utilizes PIR/Microphonics detection (patented)• Self-grounding mounting strap• Device accommodates powering over ground or neutral connection (patent pending)• Ultra low current leakage (0.5 mA) when connected via ground• Fully meets NEC 2011 Section 404.2C neutral requirements – no current leakage to ground whenconnected to neutral• Line power and load wires are interchangeable – impossible to wire backwards (patented)
Specifications
| Brand Name | Acuity Controls | Sub Brand | Sensor Switch |
| Item Name | Occupancy Sensor | Type | Decorator |
| Voltage Rating | 120 – 277 VAC | Number of Poles | 2 |
| Sensor Type | Passive Infrared | Sensing Distance | 36 ft |
| Viewing Angle | 180° | Coverage Area | 2025 ft² |
| Color | White | Mounting Type | Wall Switch Box |
| Series/Model | WSD | Frequency Rating | 50/60 Hz |
| Maximum Load Capacity | 800 W at 120 VAC, 1200 W at 277 VAC | Response Time | 30 sec – 30 min |
| Terminal Connection | Hardwired | Material | Plastic Lens |
| Dimensions | 1.68 in W x 1.63 in D x 2.74 in H | Mounting Height | 30 – 48 in |
| Temperature Rating | 0 – 60 °C | For Use With | Electronic and Magnetic Ballasts, CFLs, LEDs and Incandescents |
| Includes | Matching Wall Plate | Standards | ROHS Compliant, cUL, UL Listed |
| Application | For Restrooms with Stalls, Private Offices, Education, Government, Healthcare, Hospitality, Manufacturing, Offices and Banks, Religious, Retail, Sports and Recreation, Warehouses |
