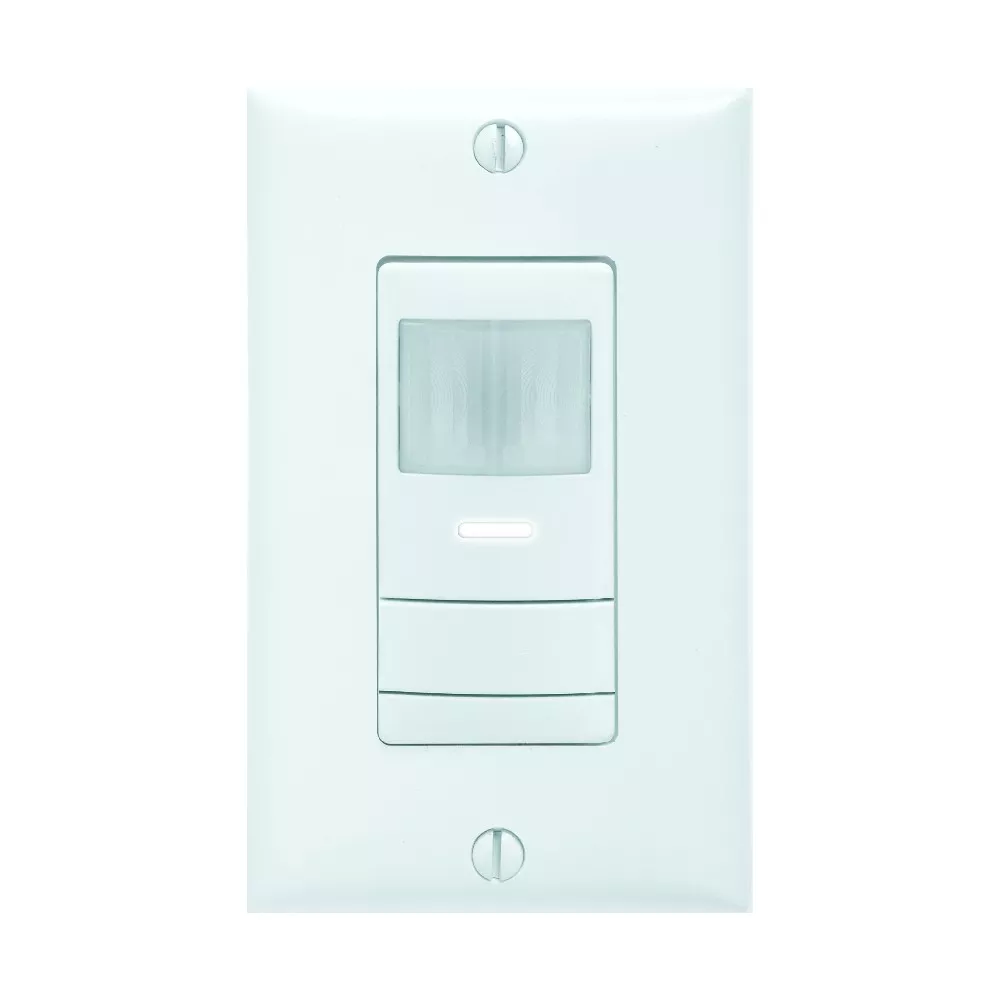

The WSX family of wall switch occupancy sensors provide simple and cost-effective solutions for commercial and residential lighting control applications. With your choice of passive infrared (PIR) or dual technology (PDT) with PIR plus patented Microphonics™ detection, the WSX family provides reliable sensing and dimming performance optimized for your space. Easy to install while helping to aid in energy code compliance, the WSX family has a patented wiring method that enables them to function with or without a neutral connection. WSX units come pre-configured for wiring without a neutral; however, if a connection to neutral is required by code, contractors can convert the unit in seconds. The WSX sensors are easy to program using the traditional push-button programming or the optional VLP mobile app.All WSX family sensors have a modern low-profile appearance, soft-click buttons and small motion detection up to 20 feet (6.10 m), making them ideal for private offices, private restrooms, closets, copy rooms or any other small enclosed space.
Specifications
| Brand Name | Acuity Controls | Item Name | Occupancy Sensor Switch |
| Voltage Rating | 120 – 277 VAC | Sensor Type | Passive Infrared |
| Sensing Distance | 20 ft | Viewing Angle | 180° |
| Color | White | Mounting Type | 1-Gang Switch Box, Wall |
| Series/Model | WSX | Frequency Rating | 50/60 Hz |
| Maximum Load Capacity | 800 W at 120 VAC, 1200 W at 277 VAC, 1500 W at 347 VAC | Dimensions | 1.68 in W x 1.63 in D x 2.74 in H |
| Temperature Rating | 0 – 60 °C | For Use With | LEDs, Electronic and Magnetic Ballasts, CFLs, and Incandescent |
| Standards | cULus Listed, Meets NEC 2011 Section 404.2C Neutral Requirements | Application | For Commercial and Residential Lighting Control Applications, Private Offices, Private Rest Rooms, Closets, Copy Rooms, or Any other Small Enclosed Space |
| UPC | 753573767527 |
