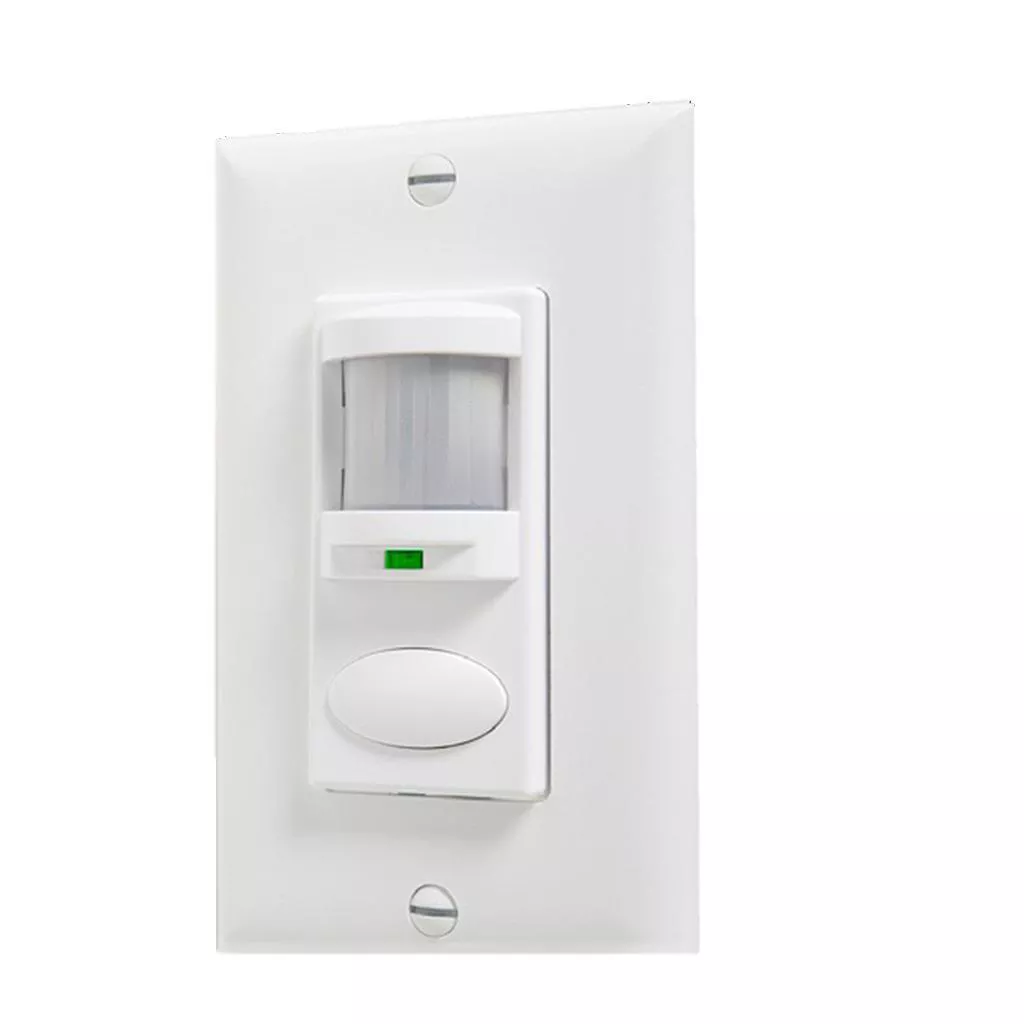

The SSD is a stylish, easy to install, and simple to use Passive Infrared (PIR) wall switch sensor. It is ideal for private offices, copy rooms, closets, or any small enclosed space without obstructions. A user programmable time delay ensures that once the room is vacated the sensor will time out and turn off the lights.FEATURES:• PIR detection – excellent RF immunity• Small motion detection to 20 ft• Self-grounding mounting strap• No neutral connection required• No minimum load and no current leakage to load• Line power & load wires are interchangeable – impossible to wire backwards(patented• Compatible w/ Electronic & Magnetic Ballasts, CFLs, & Incandescents• Push-button programmable without removing cover plate – adjustable time delays operating modes• Integrated LampMaximizer minimum on time (patented) provides increased fluorescentlamp life – disabled by default• Non-volatile settings memory
Specifications
| Brand Name | Acuity Controls | Sub Brand | Sensor Switch |
| Item Name | Decorator Switch and Sensor | Type | Passive Infrared Detection |
| Voltage Rating | 120 V | Frequency Rating | 50/60 Hz |
| Color | White | Dimensions | 1.68 in W x 1.63 in D x 2.74 in H |
| Mounting Type | Wall | Standards | cULus Listed |
| Application | For Private Offices, Copy Rooms, Closets | UPC | 820476133336 |
