Product Description

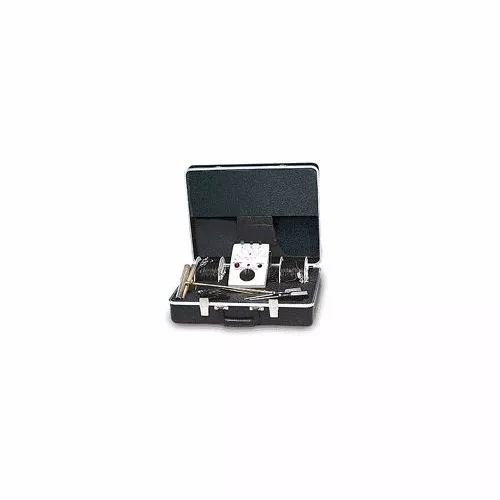

AEMC 3620 GROUND RESISTANCE TESTER KIT NEW3620 3-Point Ground Resistance Testers The Analog Ground Resistance Tester Model 3620 performs ground resistance measurement from 0.5 to 1000O with speed and accuracy. The Model 3620 features three-terminal operation for fall-of-potential earth/ground resistance, and may also be used for 2-Point tests.The large 3.1″ logarithmic scale is easy to read, with a separate marking for 25O. A large Press-to-Measure button allows for easy measurements. A manual zero adjust is provided for accurate readings. Color-coded terminals are easy to use banana plug inputs and binding posts. Features Fall-of-Potential method for 2- and 3-Point ground resistance tests Direct reading on large analog display 0.5 to 1000O and easy 25O readings Large 3.1″ (77mm), easy-to-read scale for accurate readingsBuilt-in battery checkThree color-coded terminalsLarge press-to-measure buttonsPortable and compactExtremely simple to operate: connect – press – read Designed to reject high levels of noise and interferenceApplications The Ground Resistance Tester Model 3620 is the ideal instrument for electrical contractors, power utilities, REAs, telephone and CATV technicians, and inspectors who must check ground to determine compliance with NEC, OSHA and other specifications. Applications include:Measuring earth resistance of the type of single rod or small ground grids often found in remote telecommunication switching sitesMeasuring ground electrode resistance of lightning protection equipmentMeasuring the earth electrode resistance of equipment in recreational areasTesting electrode resistance of ground rods and grids at new construction sites, when utility supplied power has not been suppliedTesting earth electrode resistance of grounded towers at cellular phone remote installationsAEMC 3620 Kit-150ft Ground Resistance Tester (Cat 2135.10)
