Product Description

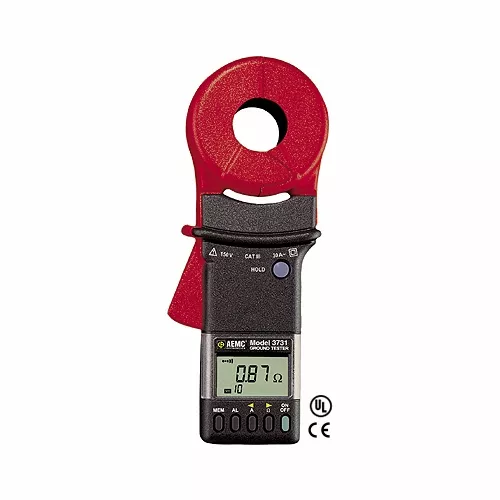

AEMC 3731 GROUND RESISTANCE TESTER KIT NEW3731 Clamp-On Ground Resistance Testers The Clamp-on Ground Resistance Tester Model 3731 measures ground rod and small grid resistance through any season, without the use of auxiliary ground rods.Clamp-on Ground Resistance Testers are used in multi-grounded systems without disconnecting the ground under test. The Model 3731 simply clamps around the ground conductor or rod and measures the resistance to ground. By performing measurements on intact ground systems, the user also verifies the quality of the grounding connections and bonds. Resistance and continuity of grounding loops around pads and buildings may also be measured.The Model 3731 also provides alarm and memory functions. Features Simple and fast clamp-on operation – no leads, no auxiliary rods or spacing requirements. No need to disconnect neutral service Direct reading of ground resistance from 0.01O to 1200O Direct reading of continuity and ground loop resistance Direct reading of ground leakage or phase current from 1mA to 30Arms Jaw design with large 1.25″ (32mm) window – accommodates up to 1000MCM cables Auto-off for power management Alarm function with adjustable set point and buzzer for quick field checks Memory function to store 99 field measurements for later retrieval CE Mark and UL approved Rugged Lexan head and body construction resists breakage Alarm settings and stored memory information saved during shutdown Patented design Applications Measure electrical ground rod and grid resistanceUse on multi-grounded systems without disconnecting the ground rod under testMeasure resistance and continuity of grounding loops around pads and buildingsMeasure leakage current flowing to ground or circulating in ground systemsConduct field surveys and retrieve and analyze readings at a later timeUse on cell towers and telecommunication sites Use on pools, spas and other consumer installations
