Product Description

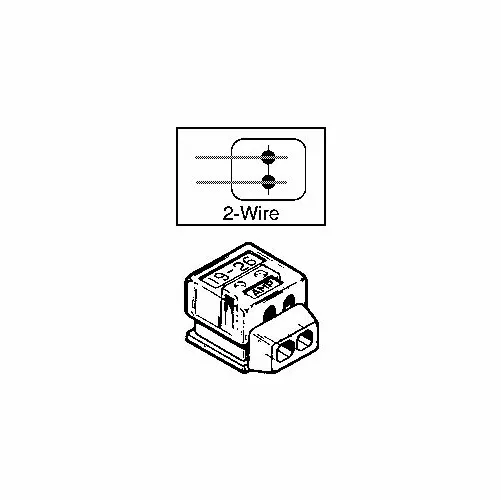

AMP TEL-SPLICE CONNECTOR 552965-2 PK/5 CARTRIDGES NEWTel-Splice Connectors provide an economical and reliable means of splicing telephone cable conductors. The connectors incorporate an insulation displacement type contact and polypropylene housings, which offer excellent dielectric characteristics and are highly resistant to chemical attack and moisture. Flame retardant connectors, with clear polycarbonate housings, are also available.Any combination of solid copper wire, 26-19 AWG [0.4-0.9 mm] can be terminated in one connector (2- or 3- wire, Half-Tap, or Clear & Cap) eliminating the need to stock several connectors to cover this wire range. Straight, bridge, and half-tap splices can be made with these connectors. The terminals are manufactured from tin-plated phosphor bronze for maximum electrical continuity.These connectors are available in both filled and unfilled versions. The filled connector prevents insulation resistance failures and degradation of the electrical contact caused by short-time water immersion or environmental contamination. A minimal amount of training is required by the operator to apply the Tel-Splice Connector. Operator’s time is kept to a minimum by eliminating the need for prestripping the wire. The final termination is a gas-tight, moisture-proof splice with maximum applied cost savings.The Tel-Splice Connector is available in either loose piece or cartridge versions.Used to splice telephone cable conductors26-19 AWG [0.4-0.9 mm] solid copper conductorsNo prestripping requiredGas-tight connectionsHousings highly resistant to chemicals and moistureAvailable in either filled or unfilled versions 2-Wire, 3-Wire, Half-Tap, and Clear & Cap versionsPackaged in either loose piece or cartridge versionsColor-coded individual connectors and colored stickers on packages for easy identificationWire entry ports extend to rear of housing, which prevents two wires sliding into one contact positionDual slot for each wireNo prestripping requiredLower applied costMinimum training requiredGas-tight connectionsUsed with PVC, PE, PP or filled cable (maximum insulation outside diameter .080 [2.03 mm]Wide range of terminating tools availableTypical Applications Load coils, Stub cables, Ready access terminals, Trunk and toll cables, Rearrangements, Half-Tapping.
