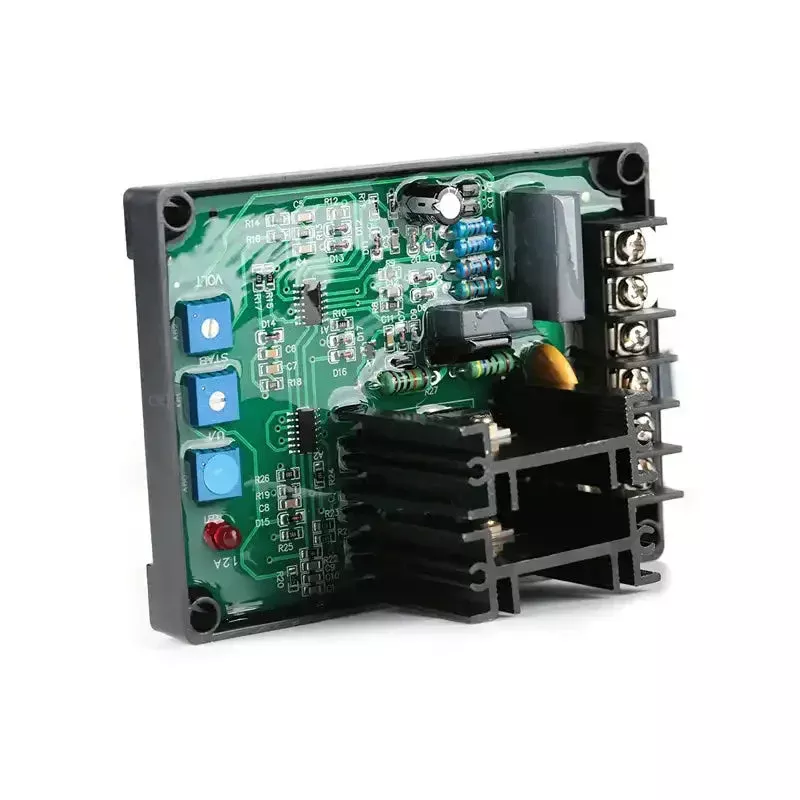

Automatic Voltage Regulator AVR GAVR-10A for Generator Genset
DescriptionFollowing are the main features of General Generator AVR GAVR-10A:1. Automatic Voltage Regulator, Brushless AVR2.MAX.Output Current:10A for 10 Second3. Loading Impedance: 15~100OHM4. Temperature Stability: <0.02%/PER Celsius Changed5. Under Frequency protection point: 45HZ for 50Hz apply (55Hz for 60Hz supply)
Specifications:Input :Sensing Voltage : 220/400VAC, 1phase 2wirePower Voltage : 180~240VAC, 1phase 2wireVoltage Jumper selectable : 95-132V ac or 190-264 Hz nominalFrequency : 50-60 Hz nominalOutput :Voltage max : 90V dc at 207V ac inputCurrent continuous : 2A dcCurrent intermittent : 5A for 10 secsResistance : 20 ohms minimumVoltage Build-up : esidualvolts at AVR terminal>5VACExternal volts adjustment : +/-7%with 1K 1watt trimmerUnit Power Dissipation : Max.8WattUnder Frequency Protection : 60Hz system presets knee point at 57HzFactory Settings : 50Hz system presets knee point at 47HzBody size : 10.7*8.2*125px
