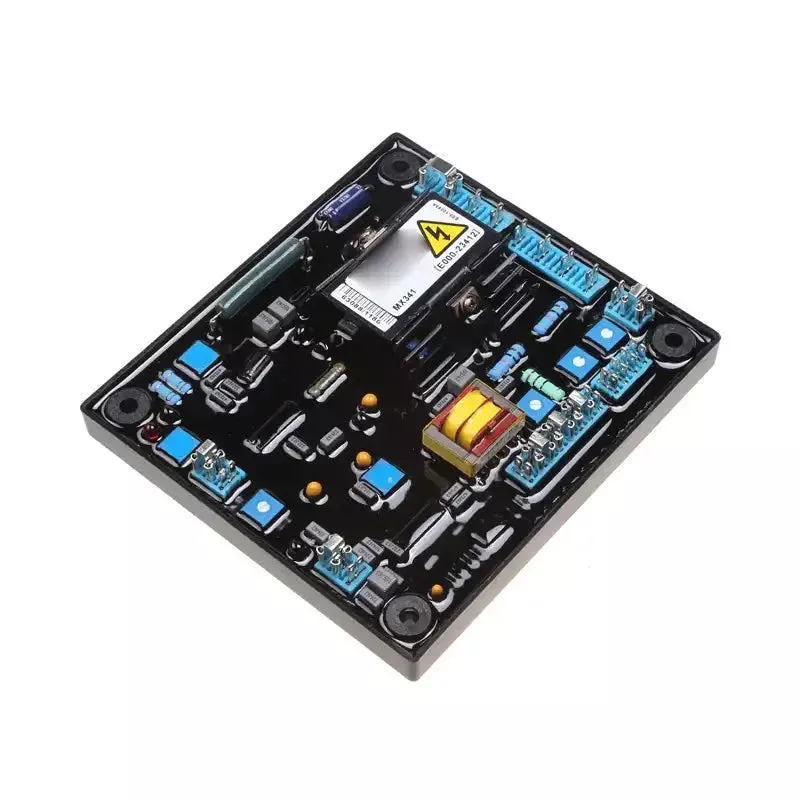

AVR MX341B Voltage Regulator Automatic for Generator
See Details:For GeneratorKey Specifications/Special Features:automatic voltage regulator(AVR), AVR-MX341BFeaturesBe applicable for separated excited alternator, brushless generator with the frequencyof 50Hz or 60Hz;Can Be Used In Parallel Operation;Under Frequency Roll Off Protection;With Under Frequency Indication;Over Excitation Protection.Technical parametersPower InputVoltage 140-220VACCurrent 3A/PhaseFrequency 100-120Hz (nominal)Sensing InputVoltage 170-260VAC or 340-520VAC (Jumper Selectable)Frequency 50-60Hz (Jumper Selectable)OutputVoltage Max. 120VDCCurrent 4A consecutive current output6A instant current for 10 sec.Excitation Resistance Min. 15Under Frequency Protection(UFRO)Set 95%Hz (By factory)Slop 100-300% down to 30HzAdjusted Rate 1% (with 4% engine governing)
