Details
- Solid forged brass

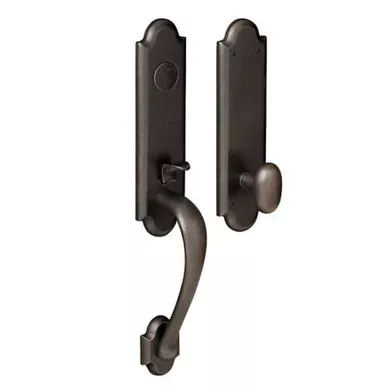

- shown with 5024 interior oval knob
- SOLID BRASS: Entrance handle, cylinder collar, knob, rose and turn piece are manufactured of solid brass formaximum strength and durability.
- INSTALLATION: Estate lock sets are designed for easy installation in standard (2-1/8″) pre-bored wood or metal doors.The adaptor aligns the latch with the trim. Graphic instructions make installation fast!
- DOOR THICKNESS: Lock sets accommodate a door thickness of 1-3/4˝ (44mm). Conversion kits are availablefor 2˝ (51mm) and 2-1/4˝ (57mm) thick doors at an additional charge.
- CASE: Deadbolt and latch case are formed of steel for strength. Most interior working parts are made ofsolid brass or steel for maximum strength and smooth operation.
- BACKSET: Adjustable backset 2-3/8˝ (60mm) or 2-3/4˝ (70mm) latch and deadbolt supplied standard.
- FULLY REVERSIBLE: accommodates most door conditions and facilitates installation
- Distance between center of latch and deadbolt (CTC): Lockset fits ONLY 5-1/2″ center-to-center dimension
- Cylinder supplied with 5-pin C Keyway. Cylinder is protected with a free-turning cylinder guard to resist gripping or twisting
- FACE PLATE: Deadbolt and latch supplied with a 1˝ (25mm) face plate.
- STRIKE: Deadbolt is furnished with a specially designed reinforcing strike constructed of high-grade steel forultimate strength and durability. The strike is installed with two (2) 3˝ (76mm) security jamb screws and a dustbox. The security strike is covered with an armored front to conceal the fasteners. The 3˝ screws securingthe inside face of the double cylinder deadbolt resist tampering and guard against theft. Latches are suppliedstandard with a full lip strike (other strikes are available at an additional charge.)
- BOLT: Deadbolt and latch bolt are constructed of solid brass. Deadbolt has 1˝ (25mm) throw when extendedand a hardened steel insert for maximum protection and security. Latch bolt has a .5˝ (13mm) throw whenextended to fully engage the door jamb.
- Limited Lifetime Mechanical Warranty
- More detail on Finishes
- All tubular locks can be customized by split finish, interior knob or interior lever. Please call 1-800-358-2469 to speak with a Baldwin specialist or to order by phone. See all estate interior knobs or lever options
