Product Description

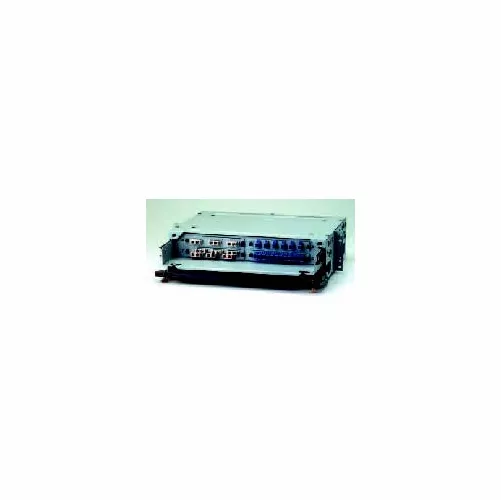

BELDEN AX100077 FIBEREXPRESS RACK MOUNT PATCH PANEL 3U NEWThe FiberExpress 3U Rack Mount Patch Panelcan accommodate up to 96 optical fiberconnections (using MT-RJ or LC connectors).The connector panel is mounted on a slidingdrawer for easy access to the back side (cableside) of the panel.The FiberExpress 3U Rack Mount Patch Panelcan be used with either optical fiber Singleendedpatch cords or field-installable connectors.If optical Single-ended patch cords are to beused, organizer trays are easily accessible viathe removable front access pull-out drawer.(Trays must be ordered separately, see section7.6.1 for ordering information).The FiberExpress 3U Rack Mount Patch Panelis a compact cross-connect assembly for thetermination of optical fiber cables. The lowprofiledesign minimizes required rack spaceto 127 mm (5 in.). It is compatible with STCompatible, SC, Duplex SC (568SC), MT-RJ,LC Duplex and FC adapter strips.Features & Benefits> Universal Connector Panel and Strips allowflexible and customized patch panel design> Sliding drawer provides easy access to fibers> Low-profile design 127 mm (5 in.) minimizesrack mounting space> Can be used with many types of commercialconnectors> Can be mounted flush or recessed 127 mm(5 in.)> Will fit 23 in. bays 19 in. racks and can bewall mounted, if required> Smoked plexiglass removable door allowseasy visual access to patch cords> Provides for bonding and grounding ofcables as well as offering strain relief> Ensures a minimum bend radius throughoutthe panel> Accommodates storage of patch cord slack> Can be used with either splice organizer trayor field-installable connectors.Applications> Central office equipment bays> Equipment racks or cabinets (19 in. or 23 in.)> Termination of fiber cables, either in-buildingor TELCO application> Telecommunication rooms or main distributionrooms> Intermediate Cross-Connect, horizontalCross-Connect or horizontal cablingtransition points.Technical Specifications> Connector capacity: 24 and 48 (four strips)(up to 96 fibers with MT-RJ or LC connectors)> Four 203 mm (8 in.) or 305 mm (12 in.).Dimensions (H x W x D)124.5 x 483 x 315 mm (4.9 x 19.0 x 12.4 in.).Material> Steel 14 gauge> Color: Gray or Black> Weight: 7 kg (16 lbs).
