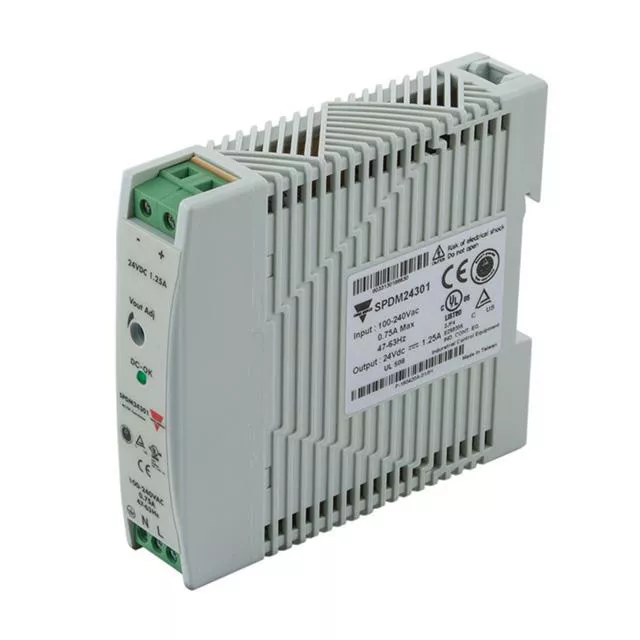

The SPDM is designed to be used in all automation applications, where it can be easily installed on the Din Rail and save installation time by up to 50% with the option of the spring terminal. The SPDM is a premium quality product at a attractive price level. Reliability is guaranteed through the multiple integrated protections.
Specifications
| Brand Name | Carlo Gavazzi | Item Name | Switching Power Supply |
| Type | 1-Phase | Input Voltage | 85 – 264 VAC, 120 – 375 VDC |
| Output Voltage | 24 VDC | Power Rating | 30 W |
| Series/Model | SPDM | Amperage Rating | 335 mA at 115 VAC, 210 mA at 230 VAC |
| Frequency Rating | 47 – 63 Hz | Efficiency | 0.86 |
| Terminal Type | Screw | Material | Plastic Case |
| Dimensions | 0.89 in W x 3.94 in D x 3.54 in H | Mounting Type | DIN Rail |
| Temperature Rating | -25 to 71 °C | Standards | EN60950-1, EN61000-6-3:2007+A1:2011+AC:2012 0-6 3:2007+A1:2011+AC:2012 EN61204-3:2000, EN61000-3-2, CE, UL508 Listed, UL60950-1 cULus, cURus, UL1310 Class 2, IEC 60068-2-6, IEC 60068-2-27 |
| Application | For All Applications Which Require Single Phase Power Supply with Universal Voltage Input and High Efficiency |
