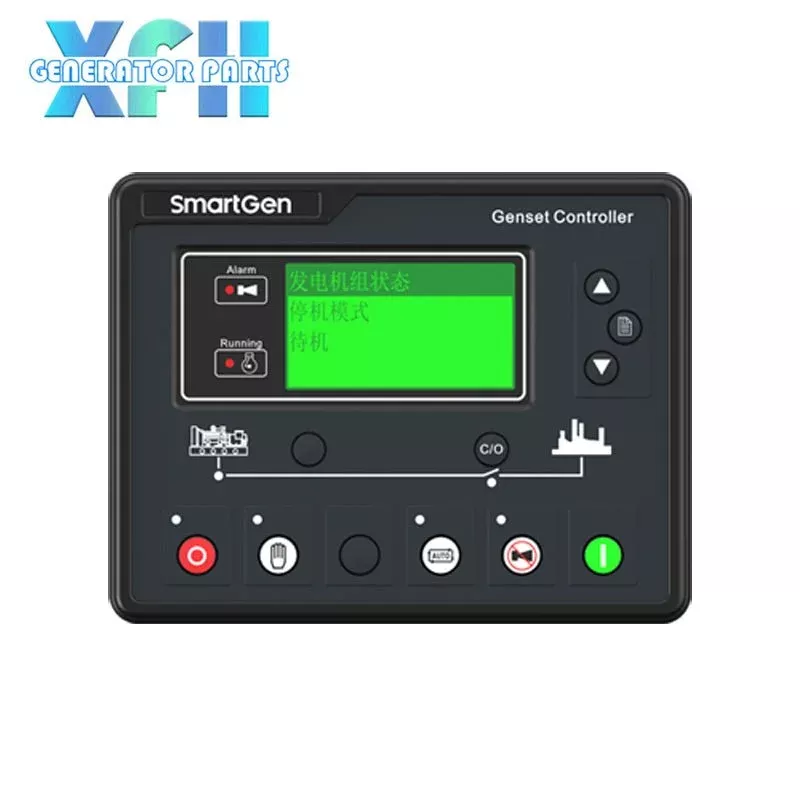

Original Smartgen HGM7210CAN Genset Controller
Smartgen HGM7210CAN power station automation controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single diesel unit to achieve remote start/stop, data measurement, alarm protection and etc. functions. It fit with LCD display, optional languages interface (Chinese, English and etc.), and it is reliable and easy to use.
Power Supply:DC(8-35)V
Case Dimensions:209*116*45(mm)
Operating Temp.:(-25~+70)
Weight:0.6kg
CHARACTERISTICS for HGM7210CAN Smartgen Controller:
|
Operating Voltage |
DC8.0V to DC35.0V, Continuous Power Supply. |
|
Power Consumption |
<4W (standby 2W) |
|
Alternator Volt Input Range 3Phase 4Wire 3Phase 3Wire Single Phase 2Wire 2Phase 3Wire |
15V AC – 360 V AC (ph-N) 30V AC – 620 V AC (ph-ph) 15V AC – 360 V AC (ph-N) 15V AC – 360 V AC (ph-N) |
|
Alternator Frequency |
50 Hz/60Hz |
|
Speed sensor voltage |
1.0V to 24.0V (RMS) |
|
Speed sensor Frequency |
10,000 Hz (max.) |
|
Starter Relay Output |
16 A 28V DC at supply output |
|
Fuel Relay Output |
16 A 28VDC at supply output |
|
Programmable Relay Output 1 |
7A 28V DC power supply output |
|
Programmable Relay Output 2 |
8A 250V AC volt free output |
|
Programmable Relay Output 3 |
16A 250V AC volt free output |
|
Programmable Relay Output 4 |
16A 250V AC volt free output |
|
Programmable Relay Output 5 |
7A 28V DC power supply output |
|
Programmable Relay Output 6 |
7A 28V DC power supply output |
|
Case Dimension |
209mm x 166mm x 45mm |
|
Panel Cutout |
186mm x 141mm |
|
CT Secondary Current |
5A rated |
|
Working Conditions |
Temperature: (-25~+70)C; Humidity: (20~93)% |
|
Storage Condition |
Temperature: (-25~+70)C |
|
Protection Level |
IP65 Front panel |
|
Insulating Intensity |
Apply AC2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min. |
|
Weight |
0.6kg |
