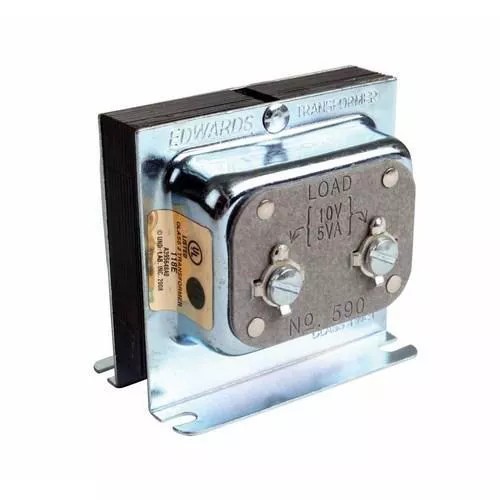

All Class 2 Signaling transformers are CSA Certified and UL Listed. Mount either through a knockout or to a flat surface with foot mounts. Can be installed with a Cat. No. 593 Mounting Plate for a completely enclosed assembly in a two gang outlet box. Screw terminals for secondary output. Suitable for chimes, door bells, light duty signals, etc.
Specifications
| Brand Name | Edwards-Signals | Item Name | Low Voltage Transformer |
| Type | Class 2 | Primary Voltage | 120 V |
| Secondary Voltage | 10 V | VA Rating | 5 VA |
| Mounting Type | 1/2 in Knockout or Surface | Application | Low Voltage Power Sources for Residential, Commercial and Industrial Uses |
| UPC | 782640246801 |
