Product Description

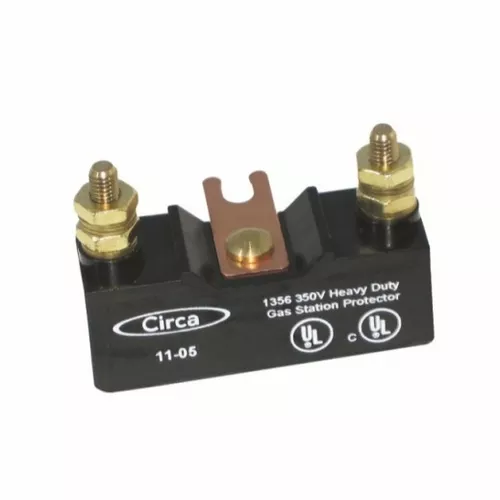

CIRCA TELECOM1356 350V Gas Station Protector 801002CIRCA 1356 350V Gas Station ProtectorModel 1356-350Order 801002Breakdown Voltage350VDCDimensions (H x W x D)1.2 x 2.25 x 1.5 inchesThe model 1356 gas station protector is designed to provide heavy duty transient and power fault protection for most standardtelephone line applications. The common chamber, 3 electrode gas tube provides true balanced operation. An overvoltage on either side of the circuit causes the entire tube to ionize and grounds both sides of the circuit simultaneously. This simultaneous grounding prevents a second arriving transient on the opposite side to pass through theequipment as may happen with 2 element configurations. This bala balanced configuration provides the best possible protection against line to line metallic surges where the transient on one side slightly lags the other.Nominal breakdown voltage for the model 1356 is 350VDC.Features: • Heavy duty surge handling capability • Modular, industry standard design • Superior common chamber design • Balanced operation • UL listed
