Product Description

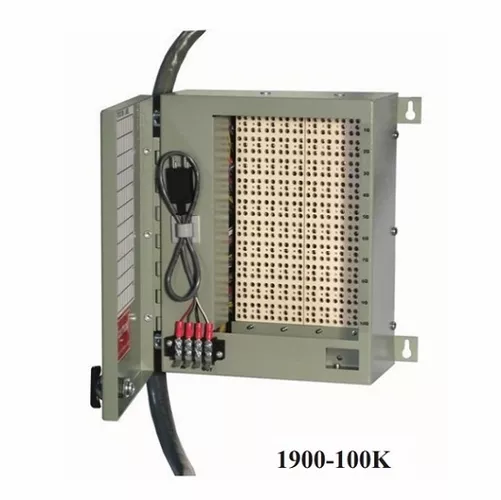

CIRCA 1900-100K STUB/STUB WITH A COVER WITHOUT MODULES BUILDING TERMINAL NEWCIRCA TELECOM1900-100K STUB/STUB WITH A COVER WITHOUT MODULES BUILDING TERMINAL NEWModel 1900-100KStock Code417018K25A25 Pair Count100InputCableOutputCableDimensions (H x W x D)10.00 x 10.75 x 4.50 inchesWeight24 lbs.Cable Type: 26AWG 25′ OSP Rated Air Core Input 0.772 dia O.D.- 24AWG 25′ Shielded CMR output 0.74 dia O.D.1900-100K 100 PAIR – INDOOR BET – 25′ OSP AIR CORE CABLE STUB/25′ CABLE STUBCirca’s cable stub units offer the user a variety of installation and splicing options depending on application specific requirements. Custom cable stub lengths are available upon request. Standard stub length on the 1900 Series, stub to stub, is 25 feet. These units are also available with stubs in/out of equal length in 50 or 100 feet. The 1900A1-100K model can also be ordered with both stubs coming from the bottom or top. The units have an internal fuse link and use industry standard 5-pin protection modules.Features and Benefits· 16AWG Powder Coated Steel Construction· 26 AWG Input Cable Stub Serves as Fuse Link· External Ground Connectors Accept 6 – 14 AWG Wire· Industry Standard 5 Pin Design· Exceeds UL497 Primary Protection Standards· Equipped with Heavy Duty Strain Relief and Encapsulated CableConnector
