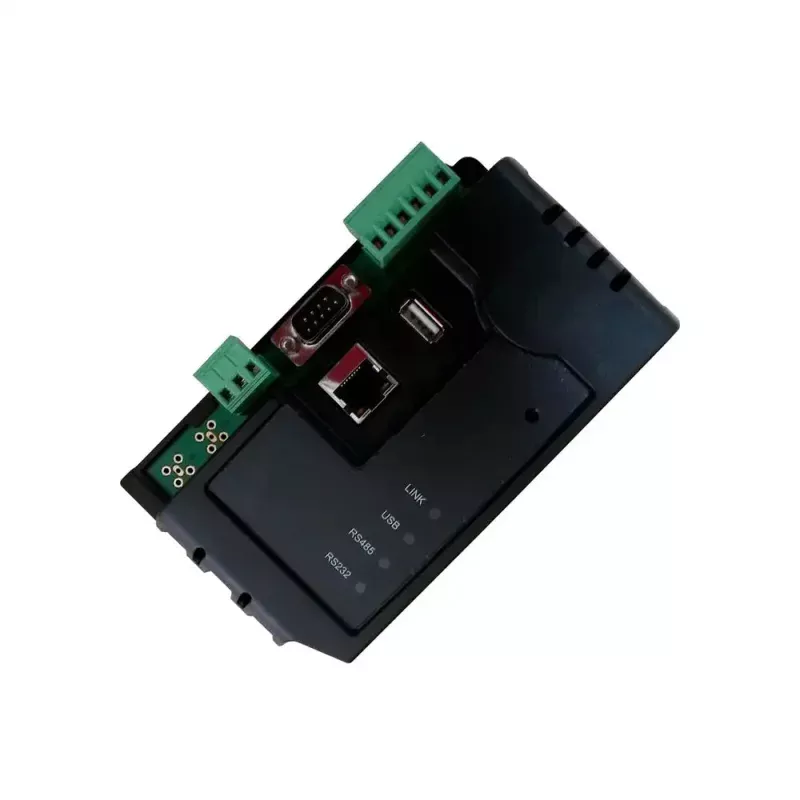

Controller DSE890 for Deep Sea With GPS GSM Antennas
Part Number:DSE890
ApplicationFor GPS & GSM Antennas
SpecificationDC SUPPLY
CONTINUOUS VOLTAGE RATING8 V to 35 V Continuous
CRANKING DROPOUTSAble to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
MAXIMUM OPERATING CURRENTGSM:700 mA at 12 V 450 mA at 24 VGSM & GPS:700 mA at 12 V 450 mA at 24 VEthernet:200 mA at 12 V 110 mA at 24 VEthernet & GPS:700 mA at 12 V 450 mA at 24 V
MAXIMUM STANDBY CURRENTGSM:270 mA at 12 V 150 mA at 24 VGSM & GPS:270 mA at 12 V 150 mA at 24 VEthernet:150 mA at 12 V 90 mA at 24 VEthernet & GPS:270 mA at 12 V 150 mA at 24 VCOMMUNICATIONSUSB(Single DSE Controller)RS232 (Single DSE Controller)RS485 (Multiple DSEControllers)Ethernet (Multiple DSEControllers)
Environmental Testing StandardsELECTRO-MAGNETIC COMPATIBILITYBS EN 61000-6-2EMC Generic Immunity Standard for the Industrial Environment.BS EN 61000-6-4EMC Generic Emission Standard for the Industrial Environment.ELECTRICAL SAFETYBS EN 60950Safety of Information Technology Equipment, including Electrical Business Equipment.TEMPERATUREBS EN 60068-2-1Ab/Ae Cold Test -30C.BS EN 60068-2-2Bb/Be Dry Heat +70C.VIBRATIONBS EN 60068-2-6Ten sweeps in each of three major axes.5 Hz to 8 Hz @ +/-7.5 mm, 8 Hz to 500 Hz @ 2 gn.HUMIDITYBS EN 60068-2-30Db Damp Heat Cyclic 20/55 C @ 95% RH 48 Hours.BS EN 60068-2-78Cab Damp Heat Static 40 C @ 93% RH 48 Hours.SHOCKBS EN 60068-2-27Three shocks in each of three major axes 15 gn in 11 ms.
Note:When placing an order, please contact us with engine /air compressor nameplate so that we can check it (or prepare the operating procedures more accurately for you).
