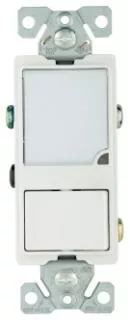

Dimmable LED nightlight combination with switch is ideal for bathrooms, hallways, stairs and landings, flush-mount LED nightlight combination devices provide added safety and comfort along with switch functionality. The nightlight features low wattage LED lamps; dimmable to the desired light level. FEATURES: – Ambient light sensor turns the nightlight On when ambient light is low, and Off when ambient light is high.- Nightlights are dimmable to desired light level.- Long-lasting energy efficient LED bulbs are rated for 50,000 hours lamp life.- Nightlight features full dimming as well as 3 preset levels to easily match light levels on devices mounted in series.- Nightlights use LED lamps that consume a maximum of 1 watt of energy.- Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosures and provides redundant measure of ground continuity where a jumper is used. – Convenient patented built-in wire stripper speeds installation.- Terminal screws are backed out and ready for wiring to enhance ease of installation.- Devices mounted in series can be controlled by an external switch in guide light mode.
Specifications
| Brand Name | Cooper Industries | Item Name | Combination Nightlight with Switch |
| Type | Residential, Heavy Duty, Single Pole, Dimmable | Voltage Rating | 120 V |
| Amperage Rating | 15 A | Conductor Size | 14-12 AWG |
| Enclosure Standard | Polycarbonate | Dimensions | 2 in L x 2 in W x 4-1/4 in H |
| Phase | 1 | Number of Poles | 1 |
| Switch Type | On/Off | Terminal Connection | Screw Terminal |
| Material | Metal | Color/Finish | White |
| Mounting Type | Flush | Standards | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, cULus Listed, UL 1472 File Number E47967, UL 94 |
| Application | For Combination Device | UPC | 032664727801 |
