Home » Shop » hot sale » DCD 00503-330 Stub-e-dub Lite Swivel Swl 60,000 Lb Type 3

DCD 00503-330 Stub-e-dub Lite Swivel Swl 60,000 Lb Type 3

Original price was: $2,433.61.Current price is: $1,925.38.

Sale!
SKU: 30512777 Category:
Share

Product Description

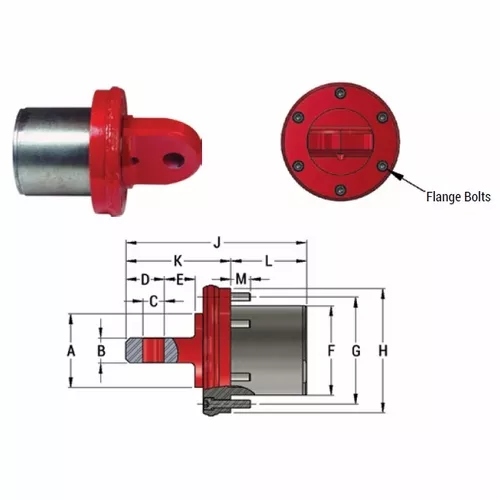

DCD 00503-330 Stub-e-dub Lite Swivel Swl 60,000 Lb Type 3DCD 00503-330 Stub-e-dub Lite Swivel Swl 60,000 Lb Type 3Part 00503-330 Stub-e-dub Lite SwivelType 3 – Flange/Lug3:1 Safe Working Load60,000 lbUltimate Load180,000 lbA4 3/4 inchesB1 5/8 inchesC1 3/8 inchesD2 15/32 inchesE2 inchesF5 3/4 inchesG6 7/8 inchesH8 inchesJ11 19/32 inchesK6 3/4 inchesL4 7/8 inchesM1 1/4 inchesFlange Bolts6 x 1/2 inch UNCWeight66.0 lbType 3 – Flange/LugThis style is specifically designed for directional drilling applications. It is intended to be mountedinternally into a back reamer using a bolt flange. This type of swivel permits rotation of the drillpipe while protecting the utility from twisting.
