Product Description

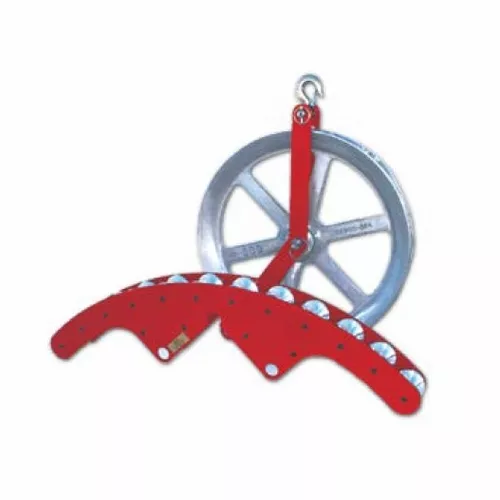

DCD 32220-312 Quadrant – Double Hanger 3 inchDiameter x 12 SheavesDCD 32220-312 Quadrant – Double Hanger 3 inchDiameter x 12 SheavesPart 32220-312 DescriptionFiber Optic Quadrant – Double Hanger 3 inchDiameter x 12 SheavesFor pulling fiber optic cable, DCD has a special series of sheaves and quadrants that will allow the maximum possible bend radius for the application. All the sheaves are aluminum while the quadrant side plates are 3/16 inch inch steel, giving the best combination of light weight and strength.The Fiber Optic Quadrant has twelve rollers set on a 26 inchradius giving the cable a minimum 26-3/4 inch inside bend radius.The one piece Fiber Optic Sheave is sized to fit through a 24 inch manhole and both the sheave and the quadrant can be used in the DCD Manhole Brace (32700 series).The hanger arms also separate easily to allow insertion of the sheave or quadrant in the middle of the pull.
