Product Description

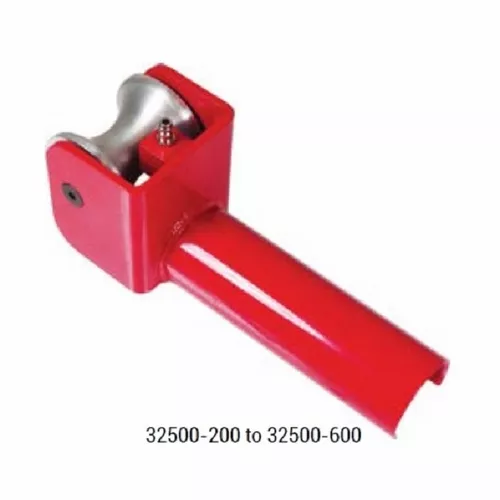

DCD 32500-480 Duct Entry Guide 4 inchDuct Sch. 80DCD DCD 32500-480 Duct Entry Guide 4 inchDuct Sch. 80Part 32500-480 DescriptionDuct Entry Guide 4 inchDuct Sch. 803:1 Safe Working Load6,000 lbDuct Diameter4 inch Schedule 80A11-1/2 inchWeight17.0 lbSpare Sheave32900-407The Duct Entry Guide is unique for two reasons. First, it has an extra long tube section that goes inside the duct (see dimension A in the diagram on the right) for greater stability. Second, because of the built-in spray nozzle for the DCD Tube-Lube® 326 application, there is one half of a quick-disconnect coupling attached to a spray nozzle that will direct the lubricant right onto the cable as it is fed into the ducting. This is a unique feature for a unique lubricant.
