Product Description

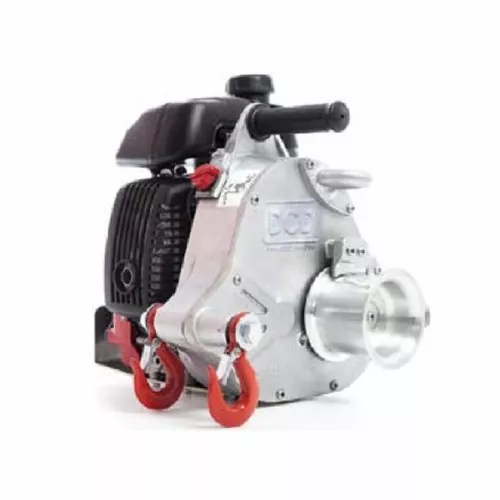

DCD 41000-300 TUF-Lugger™ Lite (High Speed) Gas powered Pulling Force 700 lbDCD 41000-300 TUF-Lugger™ Lite (High Speed) Gas powered Pulling Force 700 lbPart 41000-300 DescriptionTUF-Lugger™ Lite (High Speed) Gas powered Pulling Force 700 lbApplicationPulling Engine4-Stroke Honda GXH-50ccGearbox (Ratio)Aluminum Alloy (53:1)Turns at IdleYesMaximum Pulling Force1,100 lbStandard Capstan Size3-3/8 inch DrumPulling Speed (2.25 inch Drum)75′ per min Max Force: 1100 lbPulling Speed (3-3/8 inch Drum) 115′ per min. Max Force: 770 lbRope Size (Pulling)3/8 to 5/8 inchDimesions 14-1/4″ L x 14-5/8″ W x 14-1/4″ HWork Cycle100% Continuous WorkWeight35 lbsThe overall pulling weight that this unit can handle is lower than the regular speed model, but with a larger capstan drum, and a lower gear ratio this unit can pull at speeds of up to 115′ per minute. The other features that you’ll find on the regular speed model are still standard on this model, including the gas engine, and continuous work cycle.
