Product Description

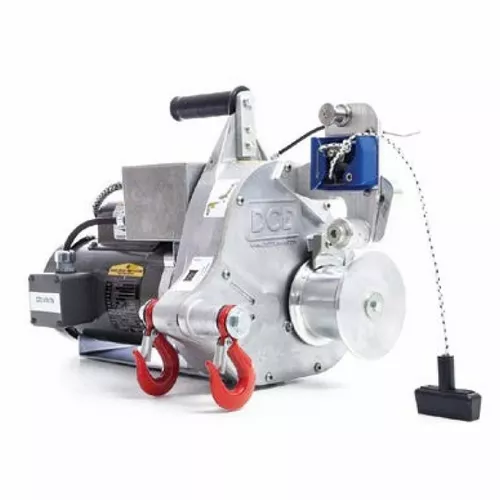

DCD 41000-500 TUF-Lugger™ Lite Lifting – AC Electric Pulling/Lifting Winch max pull 1800 lbDCD 41000-500 TUF-Lugger™ Lite Lifting – AC Electric Pulling/Lifting Winch max pull 1800 lb max lift 555 lbPart 41000-500 DescriptionTUF-Lugger™ Lite Lifting – AC Electric Pulling/Lifting Winch max pull 1800 lb max lift 555 lbApplicationPulling and LiftingEngineAC Electric Baldor TEFC 115/230 vac – 1 ph – 3/4 HP – 60 HzGearbox (Ratio)Aluminum Alloy (110:1)Maximum Pulling Force1,800 lbMaximum Lifting Force555 lbStandard Capstan Size2-1/4 inch DrumPulling Speed (2.25 inch Drum)22′ per min Pulling Speed (3-3/8 inch Drum) 35′ per min. Rope Size (Pulling)3/8 to 5/8 inchRope Size (Lifting)1/2 inchDimesions 21-7/8″ L x 14-3/8″ W x 14-3/8″ HWork Cycle15 min/hr (to avoid overheating)Weight53 lbsTUF-Lugger™ Lite Lifting – ElectricThis electric model gives you the option of working in areas where gas motors are prohibited, such as indoors. With a higher pull load than its gas powered counterpart this electric puller makes a powerful addition to the team. It comes standard withthe same rope grabbing system as our other lifting unit, so you can feel confident that this machine is just as safe and reliable.
