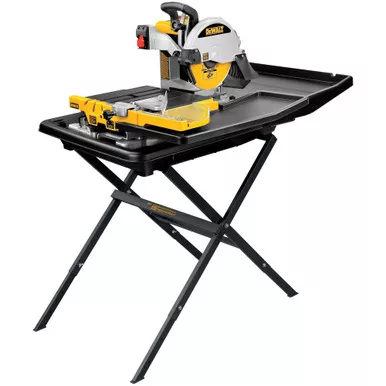

- Cantilevering Rail/Cart system allows for 24″ ripping capacity – 18″ tile on diagonal
- Only 69 lbs – allows one person to transport and set up saw
- Stainless steel rail system is integrated into the saw frame, ensuring accurate cuts
- Integrated 45/22.5° miter feature for quick angled cuts
- Plunge feature allows the user to make quick plunge cuts for electrical outlets and A/C registers
- Dual water nozzles can be adjusted for optimal water placement on blade in order to minimize over-spray and mist
- Rear and side water attachments help contain water run-off and blade spray
- Removable cutting cart for easy cleaning of tile saw
- Compact saw frame allows for easy transport and storage in vehicle – 34″ x 26″
- 3-1/8″ depth of cut allows for cutting of V-cap and pavers
- Powerful 1.5 HP motor will cut hard materials such as porcelain and stone
- 5 gallon water pan allows for quick set-up and break-down
- Edge Guide with 2-position 45 degree guide allows for easy line-up of corner cuts.
- Includes Folding Stand
Specifications
| Amps | 15.0Amps |
|---|---|
| Blade Diameter | 10″ |
| Max Rip Capacity | 24″ |
| Diagonal Cut Capacity | 18″ |
| Tool Weight | 69lbs |
| Plunge Feature | Yes |
| Max Depth of Cut | 3-1/8″ |
| Integrated 45° Miter | Yes |
| Integrated 22.5° Miter | Yes |
| Length | 34″ |
| Width, Housing Only | 26″ |
| Edge Guide | 45/90° |
| Pan Material | ABS Plastic |
| Stand | Included in D24000S-A |
| Removable Water Containment Tray | Yes |
| Position of Rail System | Integrated |
| Horsepower | 1.5HP |
