FEATURES
- Rack and pinnion telescoping fence rails make fence adjustments smooth and accurate
- 24″ of rip capacity for ripping 4×8 plywood or OSB sheets
- Run off of 20V/60V Flexvolt battery system for maximum portability
- Site-Pro Modular Guarding System allows for tool free adjustment of the guarding
- Power-Loss Reset prevents accidental re-starts following a power disruption when the switch is left in the “on” position
- Metal roll cage base offer greater durability than plastic bases
- On board strorage for Guard, Fence, wrenches and miter guage
- Table coating reduces friction for smoother cutting
SPECIFICATIONS
| ARBOR SIZE | 5/8” |
| DEPTH OF CUT AT 45° | 1-3/4” |
| DUST PORT DIAMETER | 2-1/2” |
| MAX RIP TO LEFT OF BLADE | 12” |
| MAX WIDTH OF DADO | N/A |
| POWER TOOL TYPE | CORDLESS |
| TOOL HEIGHT | 12.8” |
| TOOL WEIGHT | 48 LBS |
| BLADE DIAMETER | 8-1/4” |
| DEPTH OF CUT AT 90° | 2-1/2” |
| FOR WOOD CUTTING | YES |
| MAX RIP TO RIGHT OF BLADE | 24” |
| NO LOAD SPEED | 5800 RPM |
| SYSTEM | 60V |
| TOOL LENGTH | 22.8” |
INCLUDES

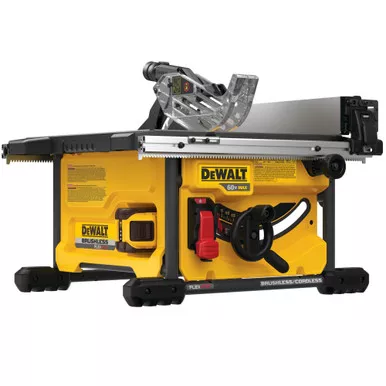

- (1) DCS7485 60V MAX* Table Saw
- (1) Carbide Blade
- (1) Push Stick
- (1) Blade Guard
- (1) Rip Fence
- (1) Non-Thru Cut Riving Knife
- (1) 20V/60V MAX* FLEXVOLT Battery
- (1) Fast Charger
- (2) Blade Wrenches
- (1) Miter Gauge
