- Zero clearance TrackSaw cutting system delivers precise, straight, splinter-free cuts
- For use with TrackSaw dual-edged tracks for perfectly straight cuts in both directions
- On-track cut depth: 2-1/8″ (54mm) @ 90°, 1-5/8″ (41mm) @ 45º; depth scale accurately indicates exact depth of cut accounting for track thickness.
- 12A, 1300W motor effortlessly powers through hard woods up to 2-1/8″ thick.
- Continuous Anti-Kickback mechanism and riving knife prevent kickback when engaged
- Low profile blade guard allows saw to be used in confined spaces.
- Straight Plunge Mechanism for optimal ergonomics
- Universal 1-1/4″ Dust Port for 90% efficient dust collection with vacuum.
Specifications
| Power | 12 Amp, 1300 W |
|---|---|
| No Load Speed | 1750 – 4000rpm |
| Blade Diameter | 6-1/2″ (165mm)” |
| Bevel Capacity | 47° |
| Max Cut at 90° | 2-1/8″ |
| Max Cut at 45° | 1-5/8″ |
| Weight | 11.5lbs |
Includes:

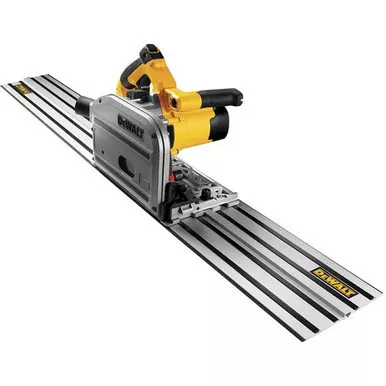

- DWS520 Heavy-Duty TrackSaw
- 6-1/2″ (20mm arbor size) 48-Tooth Ultra Fine finishing Blade
- Blade Wrench
- 59″ Track
- Kit Box
