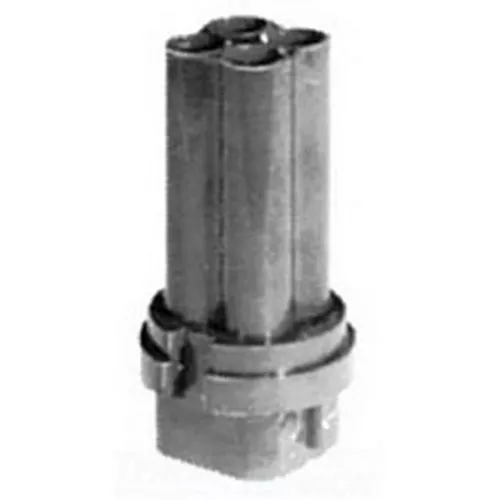

Powertite Grounding Style 1 Receptacle, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 4 – 1 AWG (Building), 4 – 2 AWG (Extra Flex), Amperage Rating: 100 AMP, Voltage Rating: 600 VAC At 50 – 400 HZ, 250 VDC, Phase: 3 PH, Material: Cop
Specifications
| Brand Name | Appleton | Sub Brand | Powertite™ |
| Item Name | Pin and Sleeve Receptacle | Type | Grounding Style 1 Receptacle |
| Voltage Rating | 600 VAC/250 VDC | Amperage Rating | 100 A |
| Number of Poles | 4 | Number of Wires | 4 |
| Conductor Size | 4-1 AWG (Building), 4-2 AWG (Extra Flex) | Material | Copper-Free Aluminum |
| Frequency Rating | 50 – 400 Hz | Phase | 3 |
| Grounding | Style 1, Grounding | Temperature Rating | -40 to 107 °C |
| For Use With | API-1044 Plug | Standards | UL 1682, UL 1686, UL 50E, UL E145916, E145917, CSA C22.2 No. 182.1, CSA 065179, NEMA FB11 |
| Application | For API-1044 Plug | UPC | 781381166348 |
